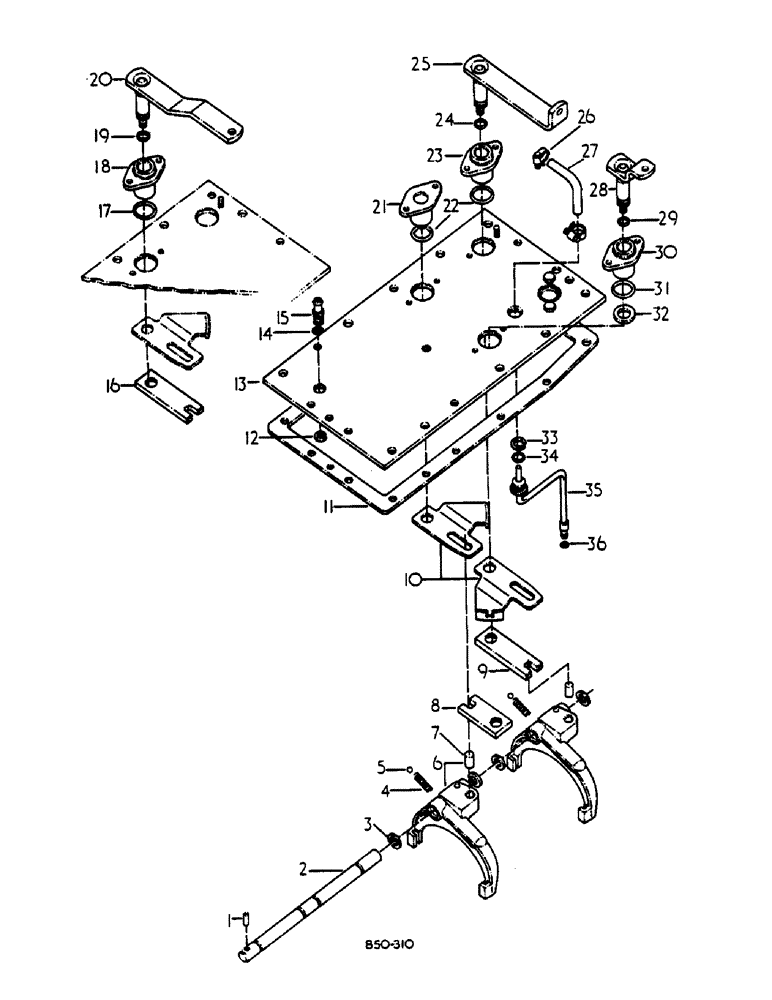

Запчасти Case IH 485 (00E17) - GEAR SHIFT MECHANISM - SPEED TRANSMISSION, 385 485 SLOW & FAST SPEED (04) - Drive Train

1

38-21620

PIN,1/4" x 1 1/4", Coiled

1/4" x 1 1/4", Coiled

1шт.

2

138328A2

RAIL

SPEED SHIFT FORK

1шт.

3

661652R1

SNAP RING,#75, Ext

4шт.

4

103062C1

SPRING

POPPET BALL

2шт.

5

211-1013

BALL,10.31mm OD, Gr 24

13/32 CHROME STEEL POPPET

2шт.

6

194982A1

SHIFTER FORK

2шт.

7

1500656C1

DOWEL

PIN, 1/2 X 2-1/4 CHAMFERED

2шт.

8

3129171R2

ARM

SPEED SHIFT 3RD/4TH - FAST SPEED

1шт.

9

3129167R2

ARM

SPEED SHIFT 1ST/2ND

1шт.

10

1500249C2

LARGE PLATE

PLATE, LARGE INTERLOCK

2шт.

11

401621R3

GASKET

TOP COVER - W/TORQUE AMP

1шт.

11

1970895C1

GASKET

TOP COVER

1шт.

12

21332R1

SNAP RING,#68, Ext

1шт.

13

3129161R91

COVER ASSY

CLUTCH HOUSING TOP - FAST SPEED

1шт.

13

3129163R91

COVER ASSY

CLUTCH HOUSING TOP - SLOW SPEED

1шт.

3129159R1

STUD

TOP COVER

1шт.

41-106

PLUG,Cup, 3/8"

3/8 CUP

1шт.

41-1620

PLUG,Cup, 1 1/4", Stainless

1-1/4 CUP

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2 REQUIRED FAST SPEED - 4 REQUIRED SLOW SPEED

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

16шт.

13

3129157R91

COVER ASSY

CLUTCH HOUSING TOP - FAST SPEED W/TORQUE AMP - W/FORWARD AND REVERSE W/O TA

1шт.

13

3129160R91

COVER ASSY

CLUTCH HOUSING TOP - SLOW SPEED W/TORQUE AMP - W/FORWARD AND REVERSE W/O TA

1шт.

3129159R1

STUD

TOP COVER

1шт.

41-106

PLUG,Cup, 3/8"

3/8 CUP

1шт.

41-1620

PLUG,Cup, 1 1/4", Stainless

1-1/4 CUP

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

W/Forward and Reverse

14шт.

14

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

NO 15

1шт.

15

3129200R1

ADAPTER

1шт.

16

3129167R2

ARM

SPEED SHIFT 3RD/4TH - SLOW SPEED

1шт.

17

391733R1

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1-1/8 X 1-1/4 X 1/16

2шт.

18

3129165R2

HOUSING

SPEED SHIFT ARM

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

19

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

3129174R1

ARM ASSY.

SPEED SHIFT ACTUATING 3RD/4TH - SLOW SPEED

1шт.

131-208

SPECIAL NUT,1/2"-13

1/2-13 NYLON INSERT

1шт.

21

1500246C1

PIVOT ASSY.

INTERLOCK - FAST SPEED

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

603570

CLIP, E TYPE

1шт.

22

391733R1

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1-1/8 X 1-1/4 X 1/16

2шт.

23

3129165R2

HOUSING

SPEED SHIFT ARM

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

24

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

25

3129166R1

ARM ASSY.

SPEED SHIFT ACTUATING 1ST/2ND

1шт.

131-208

SPECIAL NUT,1/2"-13

NYLON INSERT 1/2-13

1шт.

26

534421R1

HOSE CLAMP

WORM DRIVE

2шт.

26

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

26

215761R1

HOSE CLAMP,#9, 9/16", Spring

HOSE - OPTIONAL

2шт.

27

1500242C1

HOSE,6.75 mm ID, 12.7 mm OD, 92 mm Length

Lubrication

1шт.

28

3129172R2

ARM ASSY.

SPEED SHIFT ACTUATING 3RD/4TH - FAST SPEED

1шт.

131-208

SPECIAL NUT,1/2"-13

NYLON INSERT 1/2-13

1шт.

29

399365R1

SPARE PART O-RING, 5/8 X 1/16 CLASS 6

1шт.

30

3129165R2

HOUSING

SPEED SHIFT ARM

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

31

391733R1

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1-1/8 X 1-1/4 X 1/16

1шт.

32

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

1шт.

33

269181R1

SNAP RING,#75, Ext

pressure lub body #75, Ext

1шт.

34

379184R1

O-RING, 5/8 X 3/4 X 1/16

1шт.

35

3129164R1

TUBE ASSY.,0.25" OD, 190.5, 83 mm Length

TRANSMISSION LUB

1шт.

36

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 X 3/8 X 1/16

1шт.
