(5-174) - ADJUSTABLE FRONT AXLE, STRAIGHT, 52 TO 80 INCH TREAD

Запчасти Case IH 485 (5-174) - ADJUSTABLE FRONT AXLE, STRAIGHT, 52 TO 80 INCH TREAD (05) - STEERING

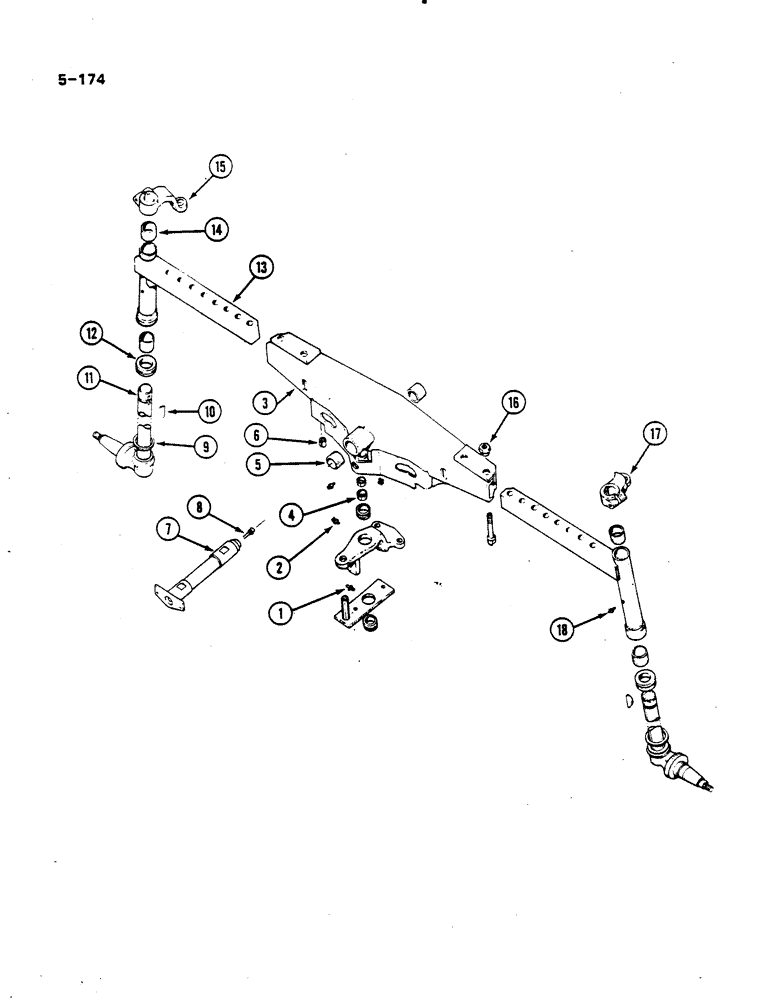

Схема запчастей Case IH 485 - (5-174) - ADJUSTABLE FRONT AXLE, STRAIGHT, 52 TO 80 INCH TREAD (05) - STEERING
13
9
5
17
8
6
12
7
14
2
16
10
11
4
15
3
18
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING grease, straight drive type, 3/16 inch

1шт.

2

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING grease, 65 degree drive type, 3/16 inch

1шт.

3

69881C92

FRONT AXLE

AXLE front, center section, Includes: Ref. 4 thru 6

1шт.

4

405574R1

BUSHING

cylinder mounting bracket

2шт.

4

1536870C1

BUSHING,25.43mm ID x 28.7mm OD x 34mm L

- Cylinder mounting bracket, new

2шт.

4

376160R1

BUSHING,25.4mm ID x 28.7mm OD x 19.3mm L

, Serial Range: optional-405574R1

2шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

6

3125304R1

BUSHING

spring, steel

1шт.

7

539128R1

SHAFT ASSY.

SHAFT, front axle pivot

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch, grade 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

8-3342

CATALOG

FITTING grease, 90 degree, 1/8 inch PTF

1шт.

9

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt, Steering knuckle

2шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

405840R12

KNUCKLE

steering, low spindle, drawbar tractor

2шт.

11

534288R92

KNUCKLE

steering, low low spindle, low profile utility tractors

2шт.

12

405831R91

BEARING

thrust, steering knuckle

2шт.

13

67533C91

EXTENSION ASSY.

EXTENSION front axle, right, low spindle, drawbar tractor, Includes: Ref. 14

1шт.

13

3116476R91

EXTENSION ASSY.

EXTENSION front axle, right, low spindle, low profile utility tractors, Includes: Ref. 14

1шт.

14

376099R1

BUSHING

extension, front axle

2шт.

15

67525C1

ARM

steering knuckle, right

1шт.

102637

NUT,1/2"-13, G5

1шт.

Use P/N 129-105

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

16

405576R1

NUT

front axle

4шт.

17

67524C1

ARM

steering knuckle, left

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

18

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING grease, drive type, 1/4 inch

2шт.
