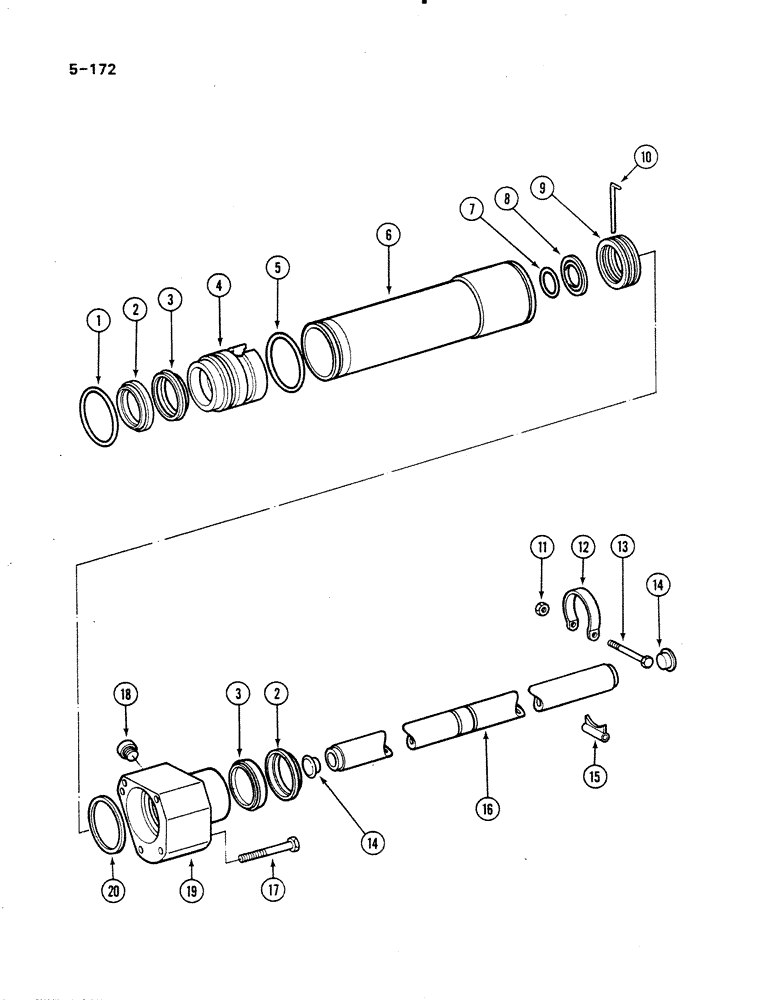

Запчасти Case IH 485 (5-172) - STEERING CYLINDER, 4 WHEEL DRIVE, MFD AXLES APL-330 AND APL-325, P.I.N. 18001 AND AFTER (05) - STEERING

NSS

NOT SOLD SEPARAT

CYLINDER ASSEMBLY steering, Includes: Ref. 1 thru 20 and ring and package

1шт.

1

81339C1

O-RING,62mm ID x 3mm Width

62 x 3 mm

1шт.

2

81340C1

SCRAPER RING

RING scraper

2шт.

3

81341C1

RING,32mm ID x 40mm OD x 6mm Thk

grooved

2шт.

4

81338C1

GUIDE

1шт.

5

81337C1

O-RING,3mm Thk x 64mm ID

64 x 3 mm

2шт.

6

81336C1

HYD CYL SLEEVE

CYLINDER

1шт.

7

81345C1

O-RING,32mm ID x 3mm Width

32 x 3 mm

1шт.

8

81346C1

GASKET

GASKET

1шт.

9

81343C1

PISTON

1шт.

10

81344C1

ELECTRICAL WIRE

WIRE lock

1шт.

11

43362

NUT,M8 x 1.25, Cl 10

hex jam, 8 mm

2шт.

12

81360C1

PLATE

stop, 45/40 degrees

2шт.

12

99094C1

PLATE

stop, 50/45 degrees

2шт.

13

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

hex, M8 x 50 mm, class 8.8

2шт.

14

81359C1

PLUG

screw

2шт.

15

81361C1

LOCKING PLATE

PLATE spacing

2шт.

16

81342C1

ROD

piston

1шт.

17

30031R1

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

hex, M10 x 80 mm, class 10.9

5шт.

18

81362C1

PLUG

oil filler

1шт.

19

81358C1

BLOCK

GUIDE

1шт.

20

81357C1

SHIM

DISK, 0.9 mm

1шт.

20

81348C1

SHIM

DISK, 1.0 mm

1шт.

20

81349C1

SHIM

DISK, 1.1 mm

1шт.

20

81350C1

SHIM

DISK, 1.2 mm

1шт.

20

81351C1

SHIM

DISK, 1.3 mm

1шт.

20

81352C1

SHIM

DISK, 1.4 mm

1шт.

20

81353C1

SHIM

DISK, 1.5 mm

1шт.

20

81354C1

SHIM

DISK, 1.6 mm

1шт.

20

81355C1

SHIM

DISK, 1.7 mm

1шт.

20

81356C1

SHIM

DISK, 1.8 mm

1шт.

81347C1

RING

guide

1шт.

81363C1

BREATHER ASSY.

PACKAGE loose parts

1шт.
