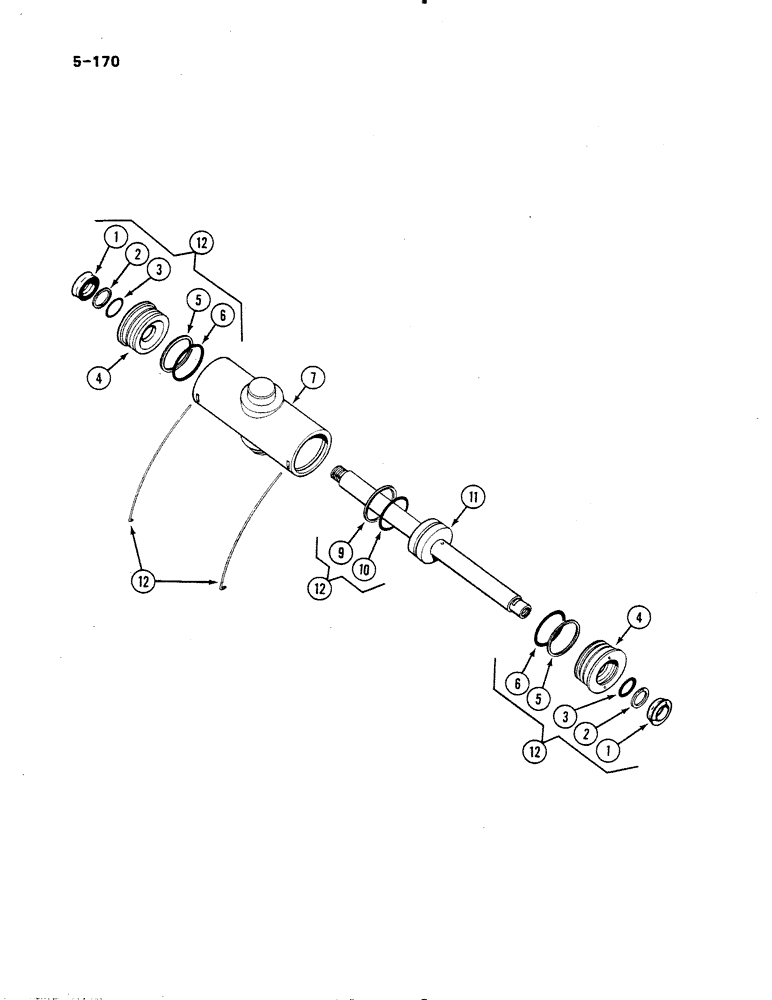

Запчасти Case IH 485 (5-170) - POWER STEERING CYLINDER, 2 WHEEL DRIVE TRACTORS (05) - STEERING

549667R92

STEERING CYLINDER

CYLINDER power steering, Includes Ref. 1 - 11

1шт.

84336125R

REMAN-HYD CYLINDER

485 (1/85-12/86), Reman for New P/N 549667R92

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

1

531183R1

WIPER SEAL,24.23mm ID x 38.91mm OD x 8.73mm Thk

WIPER piston rod

2шт.

2

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

back up, piston rod

2шт.

3

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 inch, class 6

2шт.

4

400591R1

HEAD

rear

2шт.

5

380499R1

BACK-UP RING,Split, 57.58mm ID x 63.88mm OD x 1.32mm Thk

back-up, rear head

2шт.

6

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 inch, class 5

2шт.

7

400587R1

HYD CYL SLEEVE

BODY hydraulic cylinder

1шт.

84336125R

REMAN-HYD CYLINDER

485 (1/85-12/90), Reman for New P/N 400587R1

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

8

385133R1

RETAINING WIRE

WIRE locking

2шт.

9

379959R1

RING,Square, 3.17mm Thk x 58mm ID

seal, piston

1шт.

10

27034R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 6, 90 Duro

2-1/16 x 2-1/4 inch, class 6

1шт.

11

549668R2

PISTON ROD

ROD piston

1шт.

55355C91

GASKET KIT

KIT service, O-ring and seal, includes parts listed below

1шт.

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 inch, class 6

2шт.

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 inch, class 5

2шт.

27034R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 6, 90 Duro

2-1/16 x 2-1/4 inch, class 6

1шт.

379959R1

RING,Square, 3.17mm Thk x 58mm ID

seal, piston

1шт.

385133R1

RETAINING WIRE

WIRE locking

1шт.

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

back up, piston rod

2шт.

380499R1

BACK-UP RING,Split, 57.58mm ID x 63.88mm OD x 1.32mm Thk

back up, rear head

2шт.

531183R1

WIPER SEAL,24.23mm ID x 38.91mm OD x 8.73mm Thk

WIPER piston rod

2шт.
