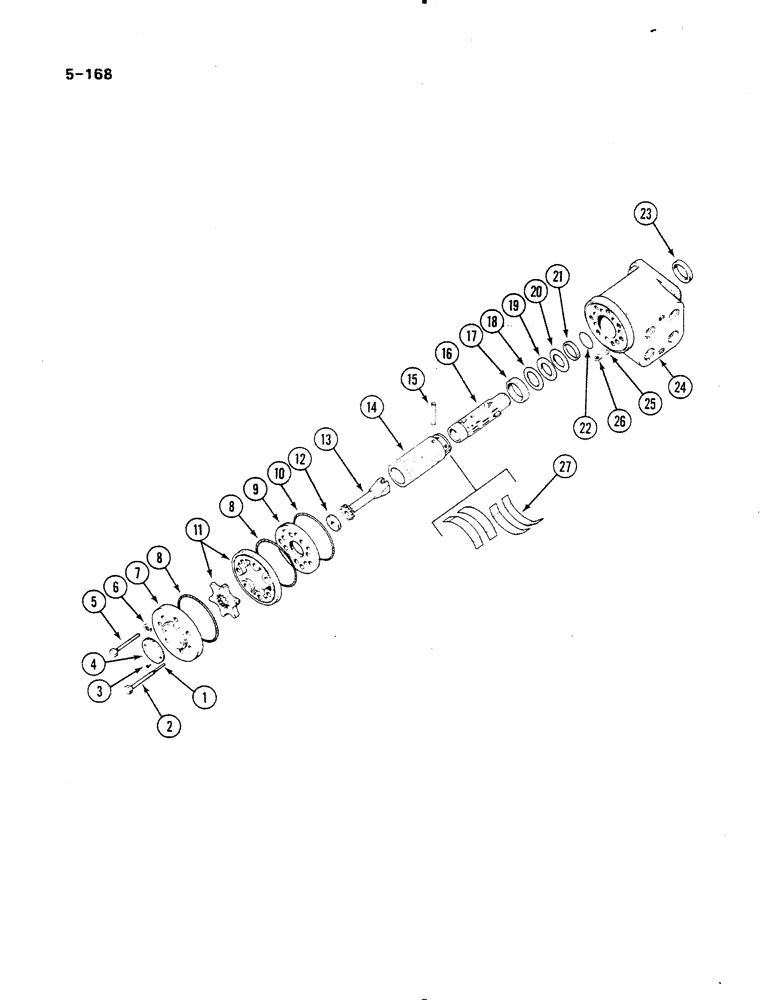

Запчасти Case IH 485 (5-168) - INTEGRAL HYDROSTATIC STEERING VALVE (05) - STEERING

67698C93

VALVE

integral, power steering, Includes: Ref. 1 thru 27 and P/N 3234338R91, Serial Range: -18001

1шт.

1

3112271R1

PIN, ROLL

PIN roll

1шт.

2

3146907R1

BOLT,M8 x 1 x 35mm, Drilled

hex, with bore

1шт.

3

217910

SCREW

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE rating

1шт.

5

3146908R1

BOLT,M8 x 1 x 35mm

hex

6шт.

6

NSS

NOT SOLD SEPARAT

WASHER, order package 1500443C91

7шт.

7

1500444C1

CAP

COVER end

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING, order package 1500443C91

2шт.

9

3112276R1

PLATE

valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING, order package 1500443C91

1шт.

11

538918R1

ROTOR ASSY.

GEAR rotor, complete, Includes: Ref. 12 and 13

1шт.

12

538916R1

SPACER

drive shaft

1шт.

13

538915R1

DRIVE SHAFT

SHAFT drive

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

15

3112269R1

PIN

cross

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

17

3112264R1

RING

Replaces: 3112246R1

1шт.

18

NSS

NOT SOLD SEPARAT

BEARING needle, order bearing assembly 3234338R91

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING needle, order bearing assembly 3234338R91

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER axial, order bearing assembly 3234338R91

1шт.

21

NSS

NOT SOLD SEPARAT

RING seal, order package 1500443C91

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING, order package 1500443C91

1шт.

23

NSS

NOT SOLD SEPARAT

RING seal, order package 1500443C91

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

25

3112270R1

BALL

steel

1шт.

26

3112272R1

BUSHING

threaded

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING leaf, order package 1500443C91

1шт.

3234338R91

BEARING SET

complete

1шт.

88107C91

PUMP

VALVE integral, power steering, Start Serial: 18001

1шт.

Pins in P/N 88107C91 are, P/N 1272796C1 pin cross, P/N 3112271R1 roll pin and P/N 1971684C1 pin, 2, pilot, looks like a little piston 2-1/2" long, 1/4" OD largest part.

1шт.

1500443C91

SEAL KIT

KIT service, seal and spring, includes parts listed below, Serial Range: 18001-18001

1шт.

NSS

NOT SOLD SEPARAT

RING dust seal

1шт.

NSS

NOT SOLD SEPARAT

SEAL lip

1шт.

NSS

NOT SOLD SEPARAT

O-RING

4шт.

NSS

NOT SOLD SEPARAT

WASHER

1шт.

NSS

NOT SOLD SEPARAT

SPRING leaf

4шт.
