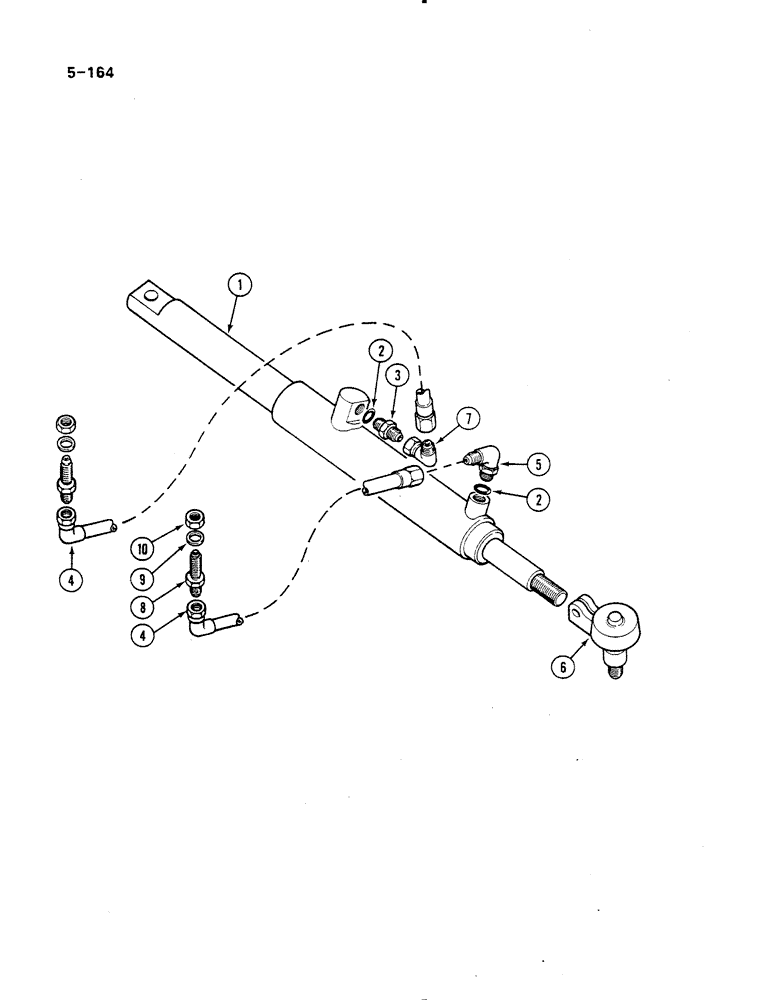

Запчасти Case IH 485 (5-164) - POWER STEERING TUBES AND HOSES, TRACTORS WITH HEAVY DUTY FRONT AXLE, P.I.N. 18001 AND AFTER (05) - STEERING

1

3118502R92

CYLINDER

power steering, refer to parts catalog CYL-1 for service parts

1шт.

P/N 3118502R92 service breakdown is 3118503R2 tube assy., 536309R1 rod assy., 536301R2 head assy., 436729 screw no. 10 x 5/16", 106497 washer no. 10 plain lock and 5366314R92 cylinder seal kit

1шт.

1

1954043C1

CYLINDER

power steering, Serial Range: optional-3118502R92

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

3

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION short, 3/8 inch OD tube

1шт.

4

3121235R1

HOSE

cylinder, power steering

2шт.

5

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 degree, 5/16 inch OD tube

1шт.

6

378817R91

BALL JOINT

END cylinder, power steering

1шт.

7

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

45 degree, swivel, 3/8 inch OD tube

1шт.

8

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION bulkhead, 3/8 inch OD tube

2шт.

9

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

10

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT lock, bulkhead union, 3/8 inch

2шт.
