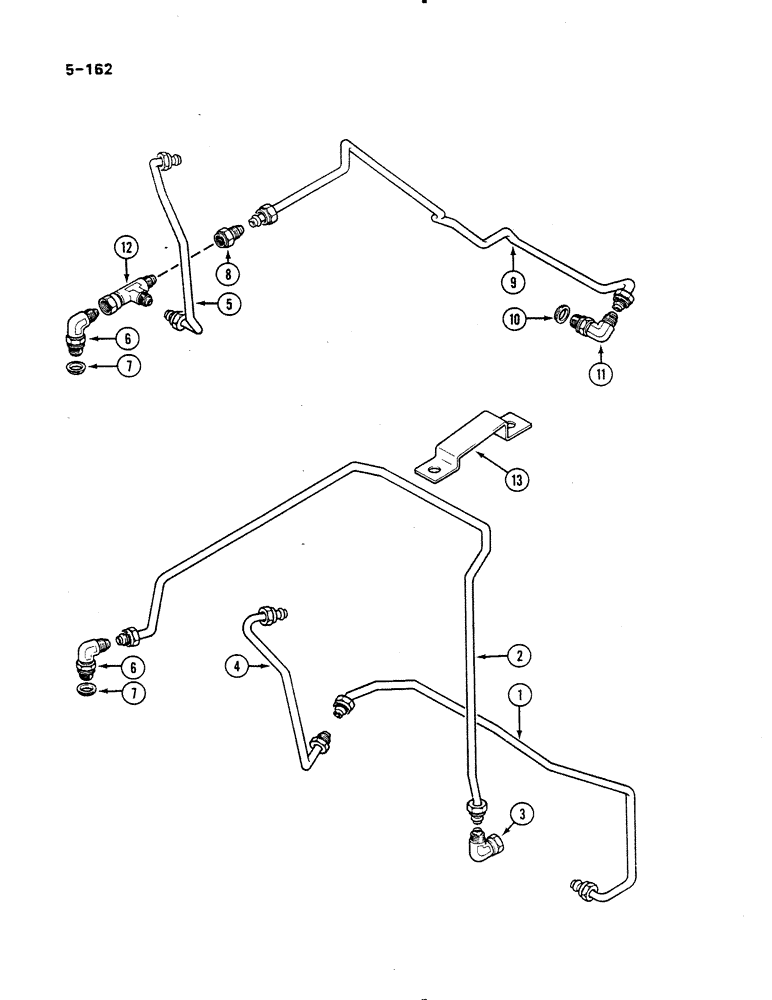

Запчасти Case IH 485 (5-162) - STEERING PIPES REAR, 4 WHEEL DRIVE, MFD TRACTORS, P.I.N. 18001 AND AFTER (05) - STEERING

1

99777C3

PIPE

TUBE pressure, power steering, rear

1шт.

2

99778C2

PIPE

TUBE return, power steering, rear

1шт.

3

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90 degree swivel, 1/2 inch OD tube

1шт.

4

99797C2

TUBE

pressure, power steering

1шт.

5

99798C1

PIPE

TUBE return, power steering

1шт.

6

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

90 degree adjustable, 1/2 inch OD tube

2шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

2шт.

8

99799C1

FITTING

UNION reducer

1шт.

9

94365C3

PIPE

TUBE transfer box

1шт.

11

99865C1

ELBOW

90 degree, 5/16 inch OD tube

1шт.

12

9410333

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

UNION tee, swivel, 1/2 inch OD tube

1шт.

13

99953C1

CLAMP

BRACKET pipe retaining

1шт.

10

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, class 6

1шт.
