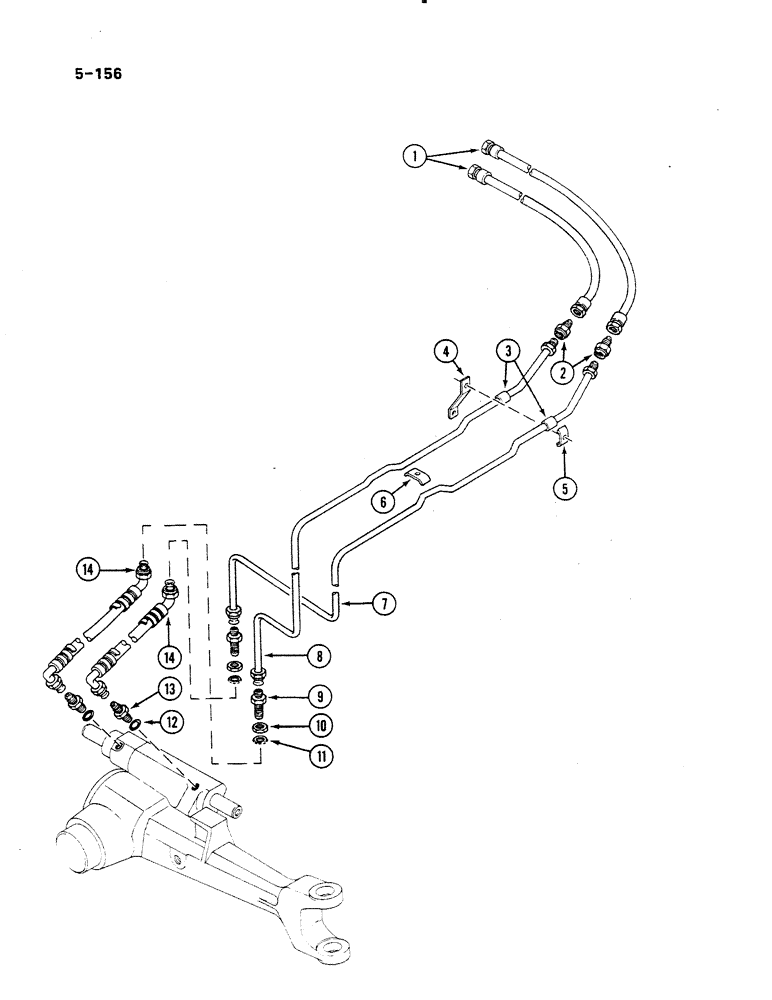

Запчасти Case IH 485 (5-156) - STEERING PIPES FRONT, 4 WHEEL DRIVE, P.I.N. 18001 AND AFTER (05) - STEERING

1

99784C1

HOSE

flexible

2шт.

2

99713C1

FITTING

UNION adapter

2шт.

3

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

2шт.

4

1500309C1

SUPPORT

BRACKET

1шт.

5

529644R1

CLAMP

tube

1шт.

930609R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

hex, M6 x 25 mm, class 8.8

1шт.

933833R1

LOCK WASHER,M6

WASHER lock, 6 mm

1шт.

6

529644R1

CLAMP

tube

1шт.

179803

BOLT,1/4" - 20 x 1 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

99557C1

PIPE

TUBE power steering, front, right

1шт.

8

99556C1

PIPE

TUBE power steering, front, left

1шт.

9

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION bulkhead, 3/8 inch OD tube

2шт.

10

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT lock, bulkhead union, 3/8 inch

2шт.

11

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

12

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

13

83357C1

FITTING

UNION straight connector

2шт.

14

87884C1

HOSE,9.53mm ID x 711mm L, SAE 100R1

steering cylinder

2шт.
