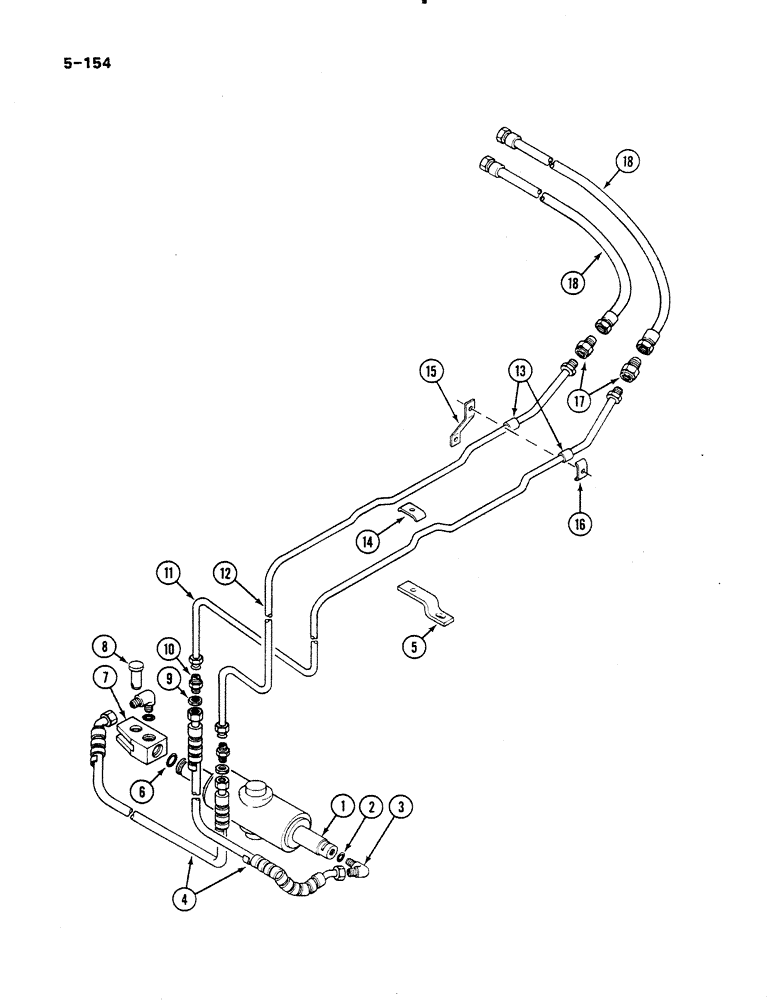

Запчасти Case IH 485 (5-154) - STEERING PIPES FRONT, 2 WHEEL DRIVE, P.I.N. 18001 AND AFTER (05) - STEERING

1

549667R92

STEERING CYLINDER

CYLINDER power steering, see Figure 5-170

1шт.

Tractors with adjustable straight front axle.

1шт.

84336125R

REMAN-HYD CYLINDER

485 P.I.N. 18001 AND AFTER (1/85-12/86), Reman for New P/N 549667R92

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

1

3118502R92

CYLINDER

power steering

1шт.

Tractors with heavy duty cast front axle.

1шт.

1

1954043C1

CYLINDER

power steering, Serial Range: optional-3118502R92

1шт.

Tractors with heavy duty cast front axle.

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

Tractors with adjustable straight front axle.

1шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 degree, 5/16 inch OD tube

2шт.

Tractors with adjustable straight front axle.

1шт.

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

37 deg., flared tube 9/16-18 inch thread, left hand side only

1шт.

Tractors with adjustable straight front axle.

1шт.

4

3121235R1

HOSE

cylinder, power steering

2шт.

5

99790C1

SUPPORT

BRACKET support

1шт.

109084

NUT,1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

1шт.

Tractors with adjustable straight front axle.

1шт.

7

3125306R1

CLEVIS,9/16" - 18

cylinder end

1шт.

Tractors with adjustable straight front axle.

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING grease, short drive type, 3/16 inch

1шт.

Tractors with adjustable straight front axle.

1шт.

8

3125305R1

PIN

power steering cylinder

1шт.

Tractors with adjustable straight front axle.

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

Tractors with adjustable straight front axle.

1шт.

9

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT lock, bulkhead union, 3/8 inch

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

10

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION bulkhead, 3/8 inch OD tube

2шт.

11

1282988C2

HYD TUBE

TUBE power steering, front, L.H.

1шт.

12

1282989C2

HYD TUBE

TUBE power steering, front, R.H.

1шт.

13

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

2шт.

14

529644R11

CLAMP

tube

1шт.

179803

BOLT,1/4" - 20 x 1 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

1500309C1

SUPPORT

BRACKET

1шт.

16

529644R1

CLAMP

tube

1шт.

930609R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

hex, M6 x 25 mm, class 8.8

1шт.

933833R1

LOCK WASHER,M6

WASHER lock, 6 mm

1шт.

17

99713C1

FITTING

UNION adapter

2шт.

18

99784C1

HOSE

flexible

2шт.
