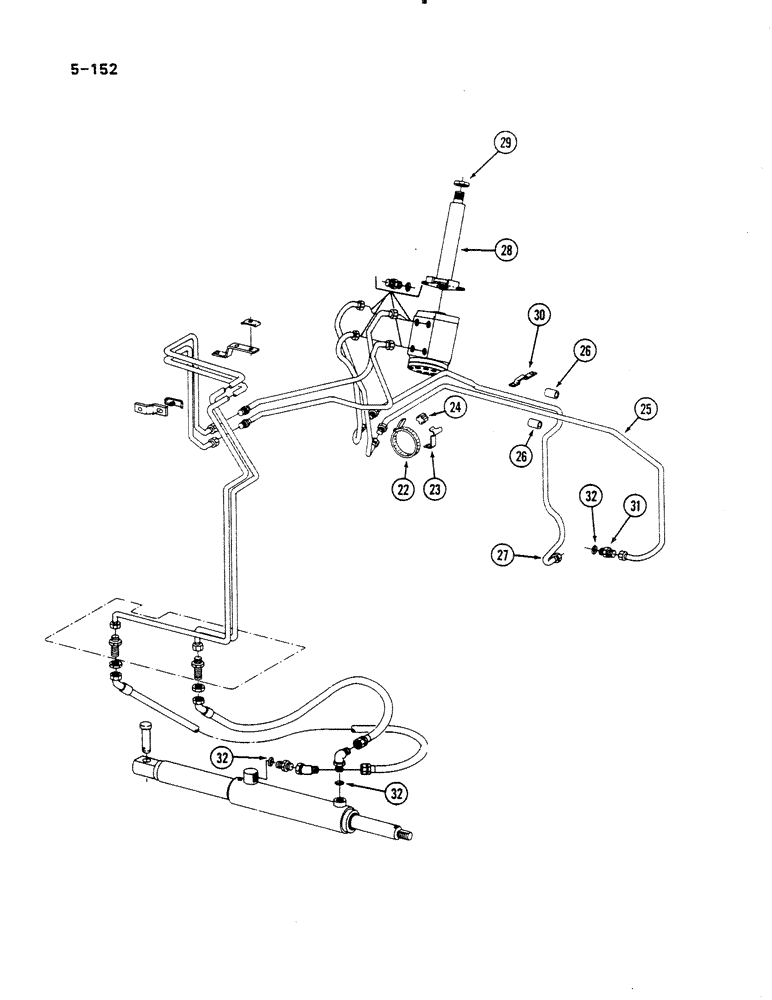

Запчасти Case IH 485 (5-152) - POWER STEERING AND HEAVY DUTY FRONT AXLE AND FABRICATED BOLSTER, ALL PRIOR TO P.I.N. 18001 (CONTD) (05) - STEERING

22

306132C1

CABLE TIE,14.5" L

STRAP cable, 4.0 max bundle, rear manifold tubes

2шт.

23

529638R1

BRACKET

rear manifold

1шт.

24

529637R2

GUIDE

manifold tube

1шт.

25

1502293C1

TUBE

pressure, power steering, rear

1шт.

26

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

2шт.

27

3129257R1

TUBE ASSY.

TUBE return, power steering, rear

1шт.

28

3121187R91

SHAFT

steering, Includes: spacer and Ref. 29

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

pipe, 3/8 x 1 inch

2шт.

29

F19646

LOCK NUT,13/16"-20, Thin

NUT hex, steering shaft, 13/16 inch

1шт.

30

3129261R1

BRACKET

pipe retaining

1шт.

31

57577C1

CHECK VALVE

VALVE check

1шт.

32

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

3шт.
