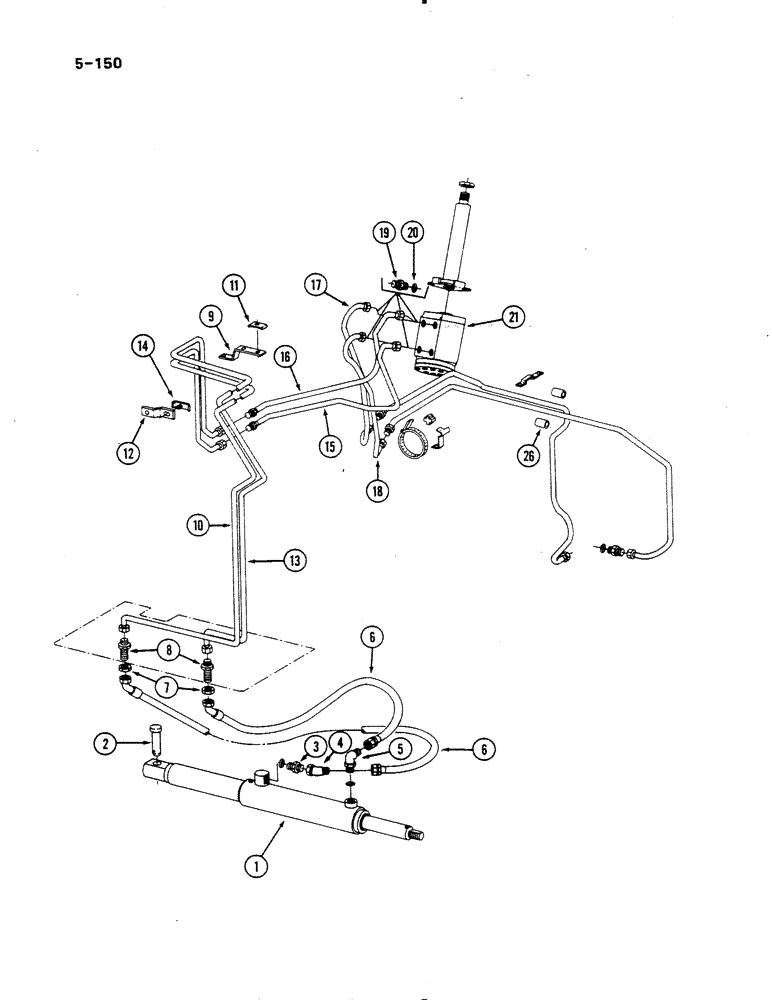

Запчасти Case IH 485 (5-150) - POWER STEERING AND HEAVY DUTY FRONT AXLE AND FABRICATED BOLSTER, ALL PRIOR TO P.I.N. 18001 (05) - STEERING

1

3118502R92

CYLINDER

power steering

1шт.

1

1954043C1

CYLINDER

power steering, optional to 3118502R92, includes kit

1шт.

The seal kit for P/N 1954043C1 cylinder assy is 1954053C1

1шт.

536314R92

SERVICE KIT

KIT service, O-ring and seal

1шт.

2

518505R1

HEADED PIN,3/4" x 3"

PIN headed, 3/4 x 3 inch

1шт.

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

3

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION short, 3/8 inch OD tube

1шт.

4

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

45 degree, swivel, 3/8 inch OD tube

1шт.

5

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 degree, 5/16 inch OD tube

1шт.

6

3121235R1

HOSE

cylinder, power steering

2шт.

7

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT lock, bulkhead union, 3/8 inch

2шт.

8

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION bulkhead, 3/8 inch OD tube

2шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

2шт.

9

529646R1

BRACKET

support, front manifold

1шт.

10

3121237R1

TUBE ASSY.

TUBE power steering, right forward

1шт.

11

384891R11

CLAMP

tube

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, 1/4 NC x 3/4 inch, grade 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

529642R1

BRACKET

front manifold

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

3121236R1

TUBE ASSY.

TUBE power steering, left forward

1шт.

14

529644R1

CLAMP

tube

1шт.

NLS

NO LONGER SERVICED

hex, 1/4 NC x 7/8 inch, grade 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

95-11028

WASHER,1/4"

flat, 0.281 x 0.625 x 0.051 inch

1шт.

15

3116268R3

TUBE ASSY.

TUBE power steering, right

1шт.

16

3116267R1

TUBE ASSY.

TUBE power steering, left

1шт.

17

3116272R2

TUBE ASSY.

TUBE power steering return

1шт.

18

3116271R2

TUBE ASSY.,0.375" OD, 12.44, 4.28" Length

TUBE power steering pressure

1шт.

19

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION straight, 3/8 to 1/2 inch

4шт.

20

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

4шт.

21

67698C93

VALVE

integral, power steering, see Figure 5-168

1шт.
