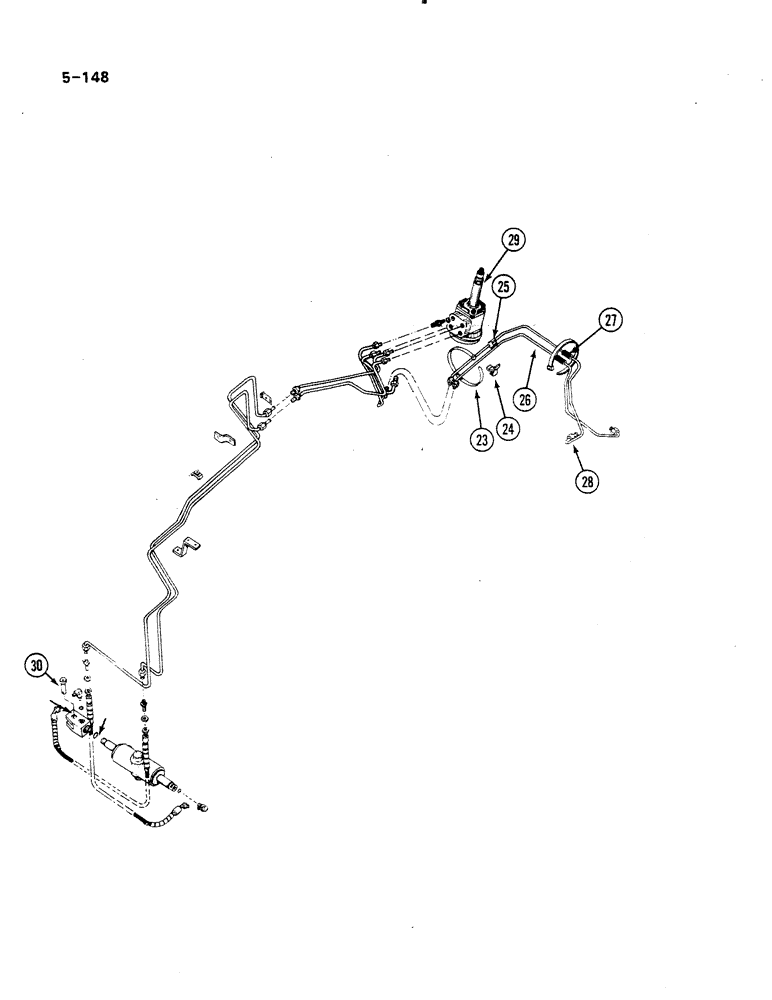

Запчасти Case IH 485 (5-148) - POWER STEERING, ADJUSTABLE FRONT AXLE AND CAST BOLSTER, PRIOR TO P.I.N. 18001 (CONTD) (05) - STEERING

23

306132C1

CABLE TIE,14.5" L

STRAP cable, 4.0 max bundle, rear manifold tubes

2шт.

24

529638R1

BRACKET

manifold, rear

1шт.

25

529637R2

GUIDE

manifold tube

1шт.

26

1502293C1

TUBE

pressure, power steering, rear, 3/8", the 1/2" tube assembly is P/N 99777C3

1шт.

3129261R1

BRACKET

pipe retaining

1шт.

27

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

2шт.

28

3129257R1

TUBE ASSY.

TUBE return, power steering, rear

1шт.

29

3121187R91

SHAFT

steering, includes nut

1шт.

F19646

LOCK NUT,13/16"-20, Thin

NUT hex, steering shaft, 13/16 inch

1шт.

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

pipe, 3/8 x 1 inch

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

30

3125305R1

PIN

power steering cylinder

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING grease, short drive type, 3/16 inch

1шт.
