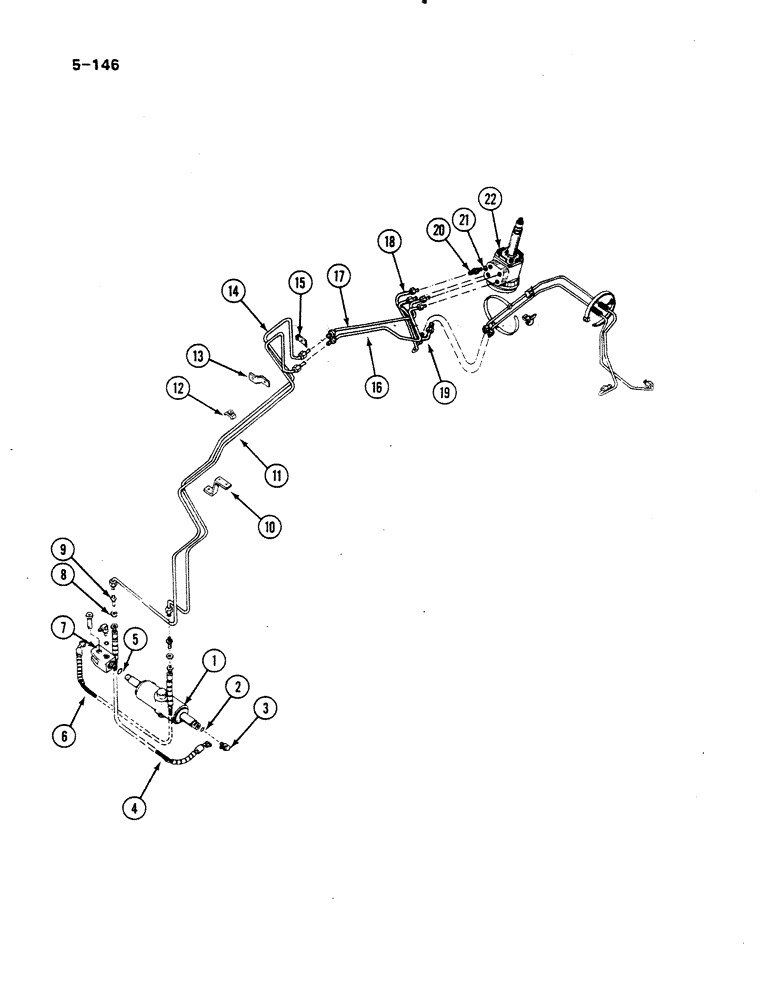

Запчасти Case IH 485 (5-146) - POWER STEERING, ADJUSTABLE FRONT AXLE AND CAST BOLSTER, PRIOR TO P.I.N. 18001 (05) - STEERING

1

549667R92

STEERING CYLINDER

CYLINDER power steering, see Figure 5-170

1шт.

84336125R

REMAN-HYD CYLINDER

485 PRIOR TO P.I.N. 18001 (1/85-12/86), Reman for New P/N 549667R92

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 degree, 5/16 inch OD tube

2шт.

4

3121235R1

HOSE

cylinder, power steering

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

1шт.

6

3121235R1

HOSE

cylinder, power steering

1шт.

7

3125306R1

CLEVIS,9/16" - 18

cylinder end

1шт.

8

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT lock, bulkhead union, 3/8 inch

2шт.

9

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION bulkhead, 3/8 inch OD tube

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

10

529646R1

BRACKET

support, front manifold

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

1шт.

11

3121237R1

TUBE ASSY.

TUBE power steering, right forward

1шт.

12

529644R11

CLAMP

tube

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, 1/4 NC x 3/4 inch, grade 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

529642R1

BRACKET

front manifold

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

3121236R1

TUBE ASSY.

TUBE power steering, left forward

1шт.

15

384891R11

CLAMP

tube

1шт.

NLS

NO LONGER SERVICED

hex, 1/4 NC x 7/8 inch, grade 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

3116268R3

TUBE ASSY.

TUBE power steering, right

1шт.

17

3116267R1

TUBE ASSY.

TUBE power steering, left

1шт.

18

3116272R2

TUBE ASSY.

TUBE power steering return

1шт.

19

3116271R2

TUBE ASSY.,0.375" OD, 12.44, 4.28" Length

TUBE power steering pressure

1шт.

20

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION straight, 3/8 to 1/2 inch

4шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

4шт.

22

67698C93

VALVE

integral, power steering, see Figure 5-168

1шт.
