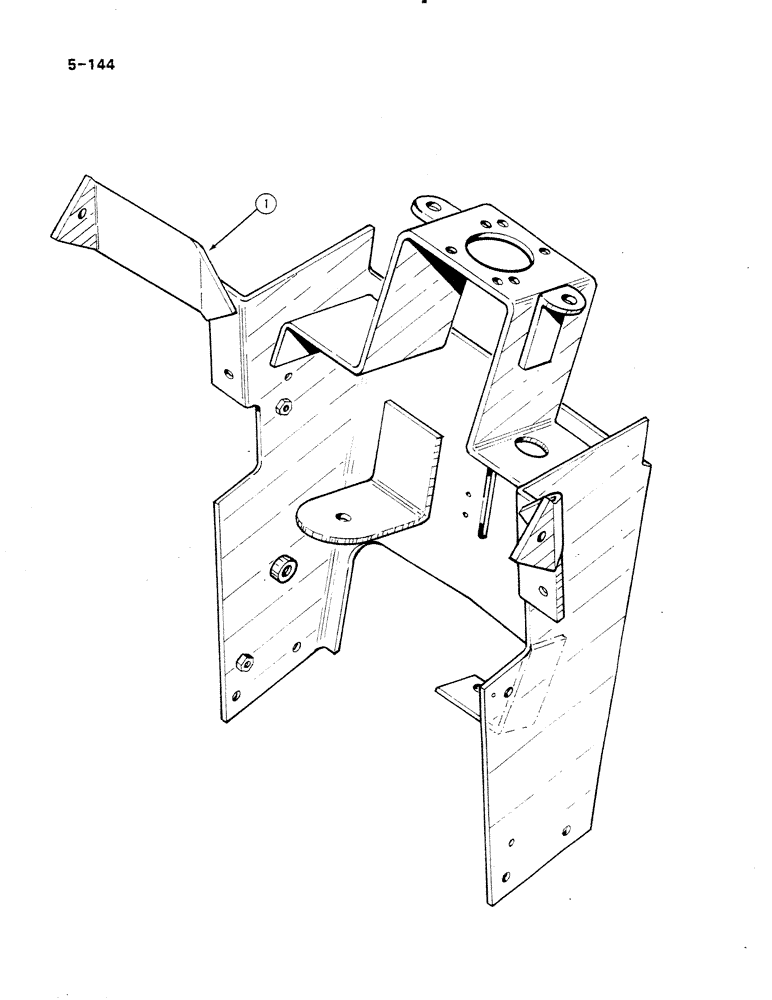

Запчасти Case IH 485 (5-144) - STEERING SUPPORT (05) - STEERING

1

3121632R2

SUPPORT ASSY.

SUPPORT steering, with forward and reverse

1шт.

1

99968C1

STEERING SUPPORT

SUPPORT steering, without forward and reverse

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

160221

SCREW,Cross Pan Hd, #12 - 24 x 1/2"

Harness ground on steering support Cross Pan Hd, #12-24 x 1/2"

1шт.

121744

ANGLE

Washer, Lock, #12, Harness ground on steering support

1шт.

225-14112

NUT,#12-24

hex, No. 12-24, harness ground on steering support

1шт.
