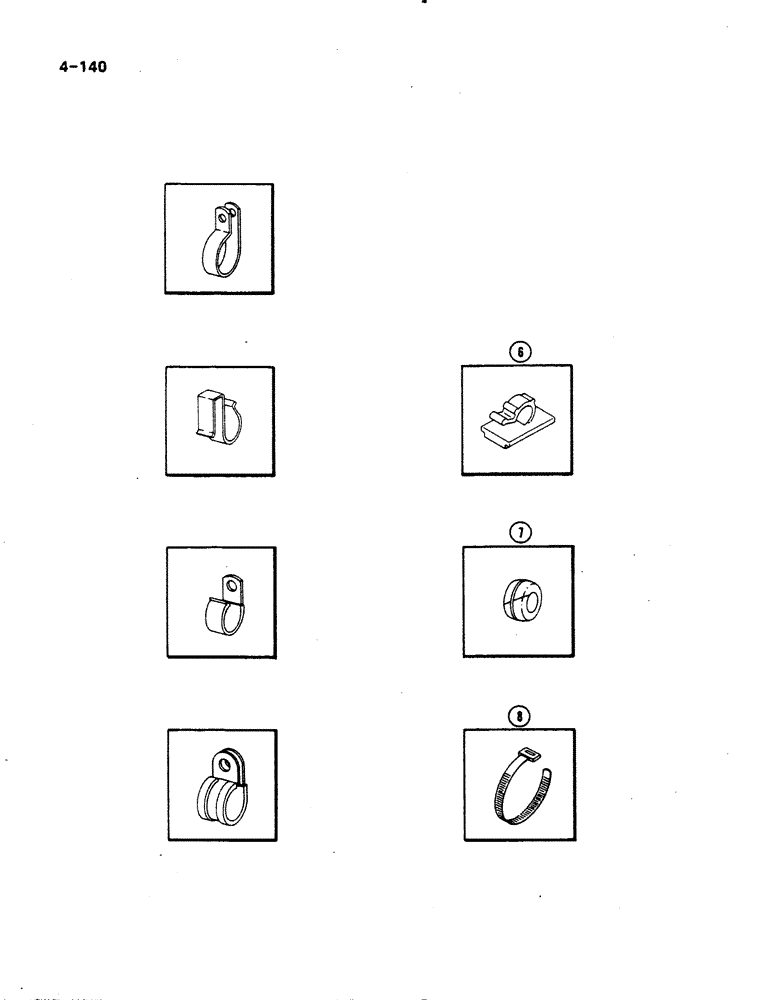

Запчасти Case IH 485 (4-140) - CLIPS, CLAMPS, STRAPS AND GROMMETS (CONTD) (04) - ELECTRICAL SYSTEMS

6

3113661R1

GROMMET

fender harness

1шт.

6

705548R1

GROMMET

0.25 x 0.56 inch, rear fender top

1шт.

6

3115463R1

GROMMET

0.50 x 0.88 inch, fender side sheet

2шт.

6

3123681R1

GROMMET

0.31 x 0.56 inch, rear fender light

2шт.

7

289862C1

CABLE TIE,3/16" x 7"

STRAP cable, 1.75 max bundle, battery cable qty 2, harness to fuel pipe qty 1, parking brake flasher qty 1, safety start cable to battery tray qty 1, harness to battery support qty 1, battery earth cable qty 2

1шт.

7

306132C1

CABLE TIE,14.5" L

STRAP cable, 4.0 max bundle, steering support, left, top qty 1, main harness to instrument shroud qty 2

1шт.
