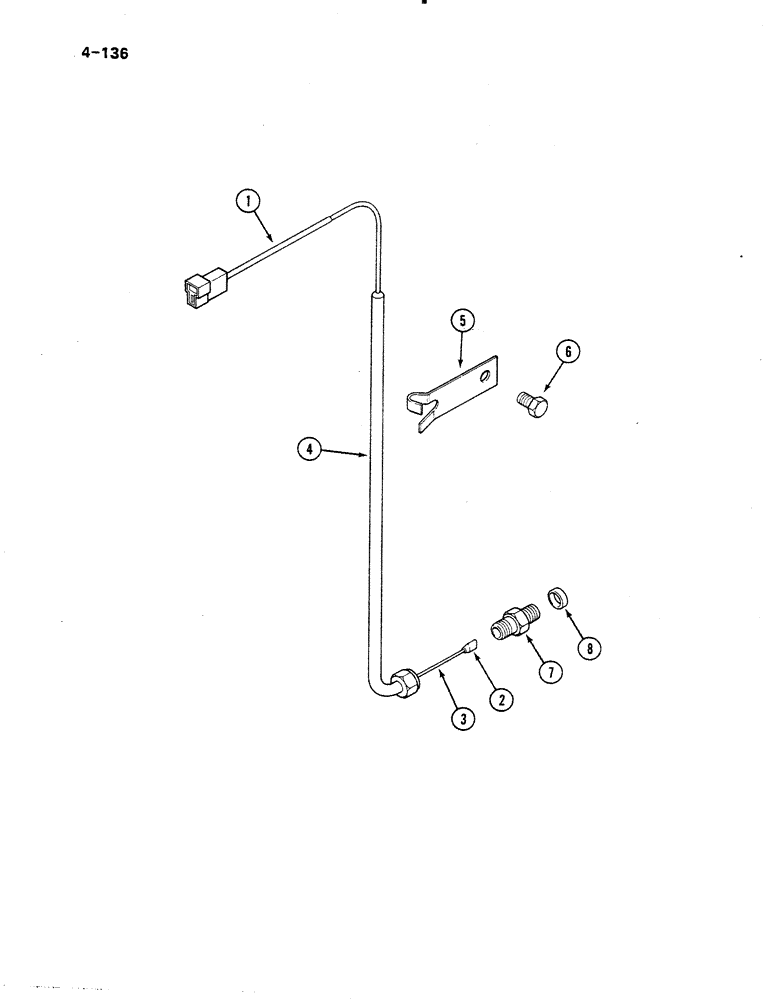

Запчасти Case IH 485 (4-136) - ELECTRICAL CONTROL, 4 WHEEL DRIVE, MFD TRACTORS, P.I.N. 18001 AND AFTER (04) - ELECTRICAL SYSTEMS

1

82634C1

CABLE

solenoid, 4 wheel drive

1шт.

If looking for the solenoid valve 4WD, see P/N 81171C1 shown in Figure 6-288, Ref. 25.

1шт.

2

905694R1

ELEC. TERMINAL PIN

TERMINAL

1шт.

3

3221235R2

RELAY

miniature, without bracket, 4 wheel drive

1шт.

4

82635C1

TUBE ASSY.,8 mm OD, 370, 40 mm Length

TUBE harness protection

1шт.

5

99842C2

CLAMP

1шт.

6

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

hex, 3/8 NC x 1/2 inch, grade 5

1шт.

7

3056174R1

HYD CONNECTOR,M12 x 1.5 x M14 x 1.5

UNION hydraulic tube

1шт.

8

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.
