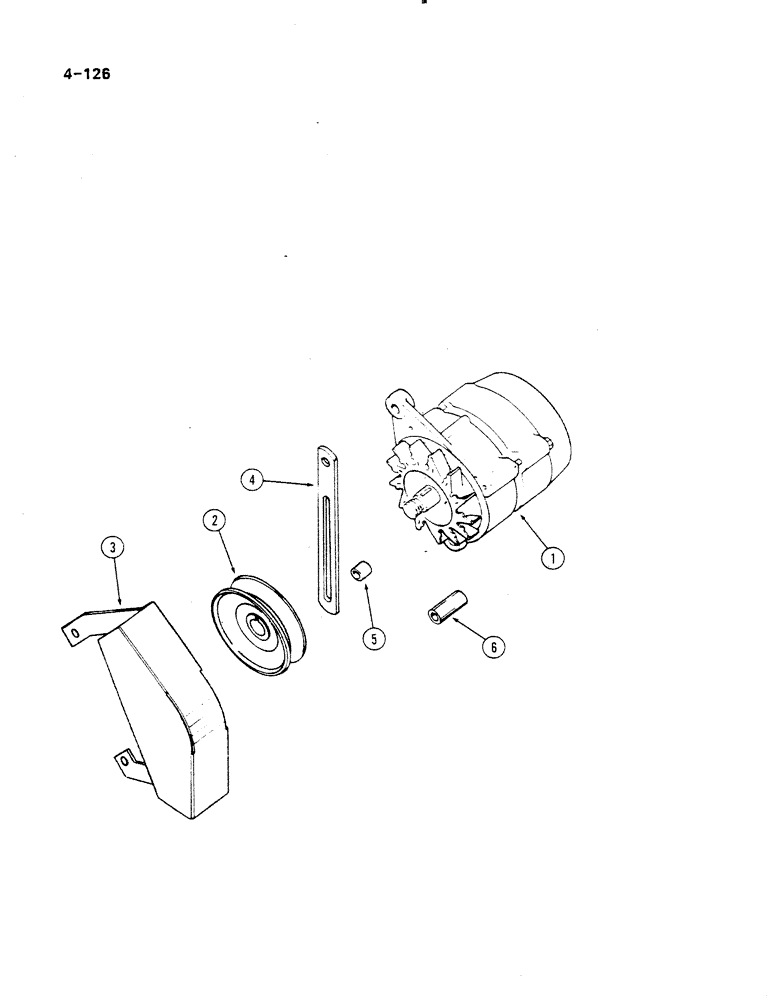

Запчасти Case IH 485 (4-126) - ALTERNATOR AND CONNECTIONS, FOR TRACTORS EQUIPPED WITH SIMS CAB, PRIOR TO P.I.N. 18001 (04) - ELECTRICAL SYSTEMS

1

84149C91

GENERATOR

ALTERNATOR, Lucas, A133-75, with fan, see Figure 4-132

1шт.

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

hex, 5/16 NC x 4-3/4 inch, grade 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER flat, 0.344 x 0.688 x 0.051 inch

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

1шт.

2

91426C1

PULLEY

fan belt, 15 mm bore

1шт.

3

84037C2

SHIELD

alternator

1шт.

4

3113336R1

BRACE

alternator

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

hex, M8 x 20 mm, class 8.8

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER flat, 0.344 x 0.688 x 0.051 inch

1шт.

5

190123C1

SPACER,1/2" Tube x 1"

tube, 1/2 x 1 inch

1шт.

186273

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

- hex, 5/16 NC x 4-1/8 inch, grade 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

3113678R1

SPACER

1шт.

84027C1

HARNESS

adapter, includes boot

1шт.

399470R1

BOOT

rubber, included in harness

1шт.

702093C1

CABLE TIE

STRAP tie

15шт.

107655C1

SOLENOID SWITCH

RELAY cab

1шт.

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

30480R1

LOCK WASHER,Ext Tooth, M6

WASHER lock, 6 mm

2шт.

934948R1

WASHER,M6

flat, 6.4 x 12.5 x 1.6 mm

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

hex, 6 mm, class 8 for mounting relay

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, , For attaching cables to relay #10-32

1шт.
