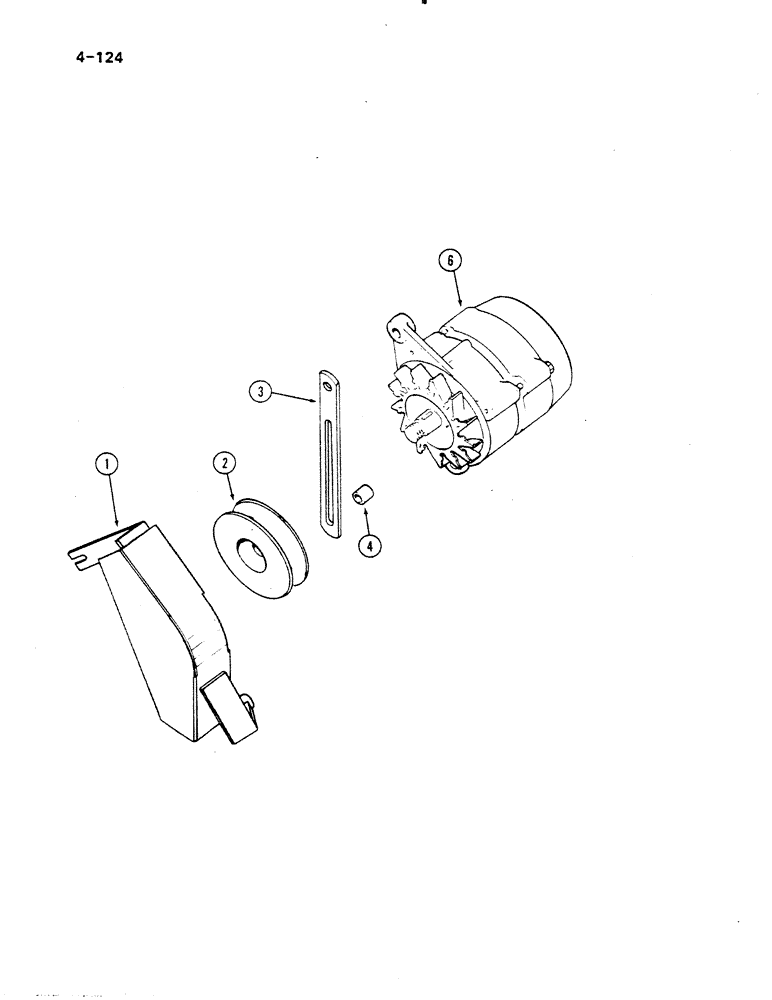

Запчасти Case IH 485 (4-124) - ALTERNATOR AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

3129852R7

SHIELD

SHIELD alternator

1шт.

272392

NUT,Hex, 5/16" - 18 x 4 3/4", Gr 5

hex, 5/16 NC x 4-3/4 inch, grade 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER flat, 0.344 x 0.688 x 0.051 inch

1шт.

2

245534C1

PULLEY

PULLEY fan belt, 15 mm bore, Lucas A15-45 alternator

1шт.

3

3113336R1

BRACE

BRACE alternator

1шт.

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT hex, M8 x 20 mm, class 8.8

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER flat, 0.344 x 0.688 x 0.051 inch

1шт.

4

65881H

SPACER,1/4" Pipe x 1 1/4"

SPACER tube, 1/2 x 1 inch

1шт.

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

BOLT - hex, 5/16"-18 NC x 4-1/2", grade 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

92293C1

ALTERNATOR

ALTERNATOR, Lucas, with fan and pulley, see Figure 4-130

1шт.

6

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

6

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

6

92293C1GV

ALTERNATOR

Value

1шт.
