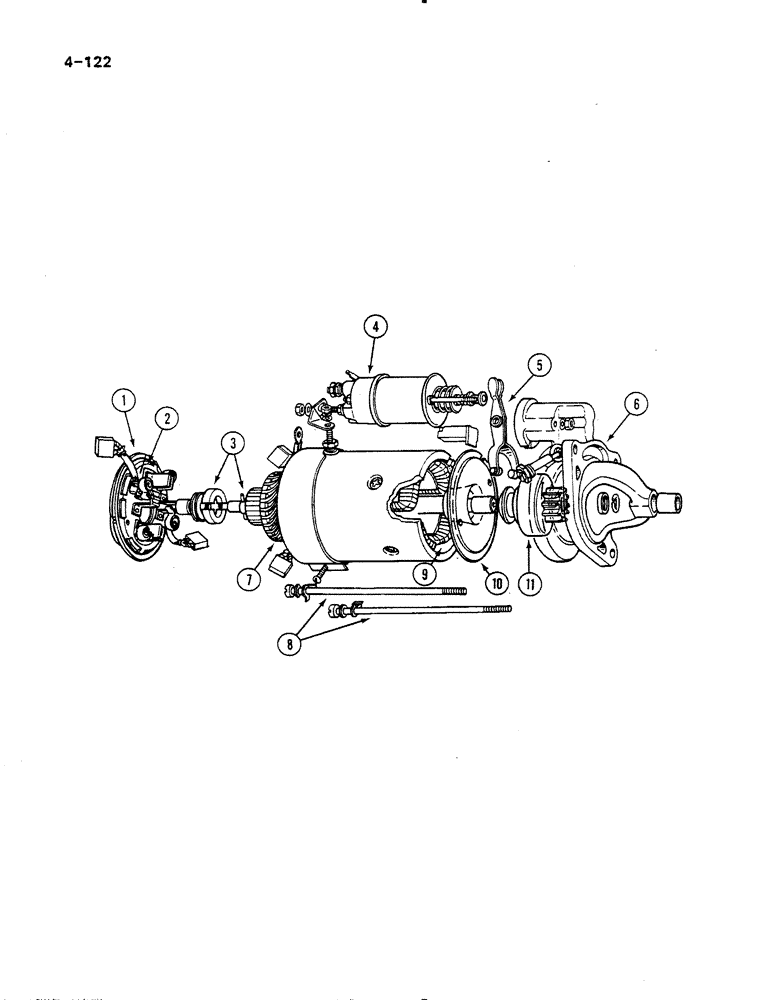

Запчасти Case IH 485 (4-122) - STARTER MOTOR, LUCAS (04) - ELECTRICAL SYSTEMS

537140R95

STARTER MOTOR

MOTOR starting, Lucas No. 27508, Includes Ref. 1 - 11

1шт.

189330A5GV

STARTER MOTOR,12V, 2.8kW

Value

1шт.

189330A5R

REMAN-STARTER,12V, 2.8kW

Remanufactured Starter 12 volt, 2.8KW

1шт.

189330A5C

CORE-STARTER,12V, 2.8kW

Return Part Number, Starter 12 volt, 2.8KW

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT - hex, 3/8"-16 NC x 1-1/4", G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

537143R1

TERMINAL CONNECTOR,Male

TERMINAL Male

3шт.

1

3206511R91

BRACKET

KIT commutator end frame

1шт.

2

3113026R91

PLATE ASSY.

PLATE brush mounting

1шт.

3118371R91

BRUSH, COMMUTATOR

BRUSH KIT brushes

1шт.

3206523R91

SPRING KIT

KIT brush springs

1шт.

3

3206531R91

BRAKE PACKAGE

KIT brakes

1шт.

4

84060C1

SOLENOID SWITCH

SWITCH solenoid

1шт.

5

84061C1

KIT

LEVER solenoid engaging

1шт.

6

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY

1шт.

7

84059C1

ARMATURE

ARMATURE

1шт.

8

3129088R1

BOLT

BOLT through

2шт.

3129089R1

WASHER

WASHER spring

2шт.

9

84058C1

KIT

KIT field coils

1шт.

10

3119902R91

SUPPORT

BEARING intermediate

1шт.

11

84209C1

DRIVE ASSY.

DRIVE ASSY., complete

1шт.

3113029R91

BUSHING

KIT bushing

1шт.

3206528R91

SEAL KIT

KIT sealing

1шт.

3206529R91

KIT

KIT sundry parts

1шт.

78986C1

PACKAGE

KIT retention

1шт.

321-3709

DECAL

DECAL warning, starter motor, English

1шт.

87297318

REMAN-STARTER

Remanufactured Starter

1шт.

87297319

CORE-STARTER

Return Part Number

1шт.
