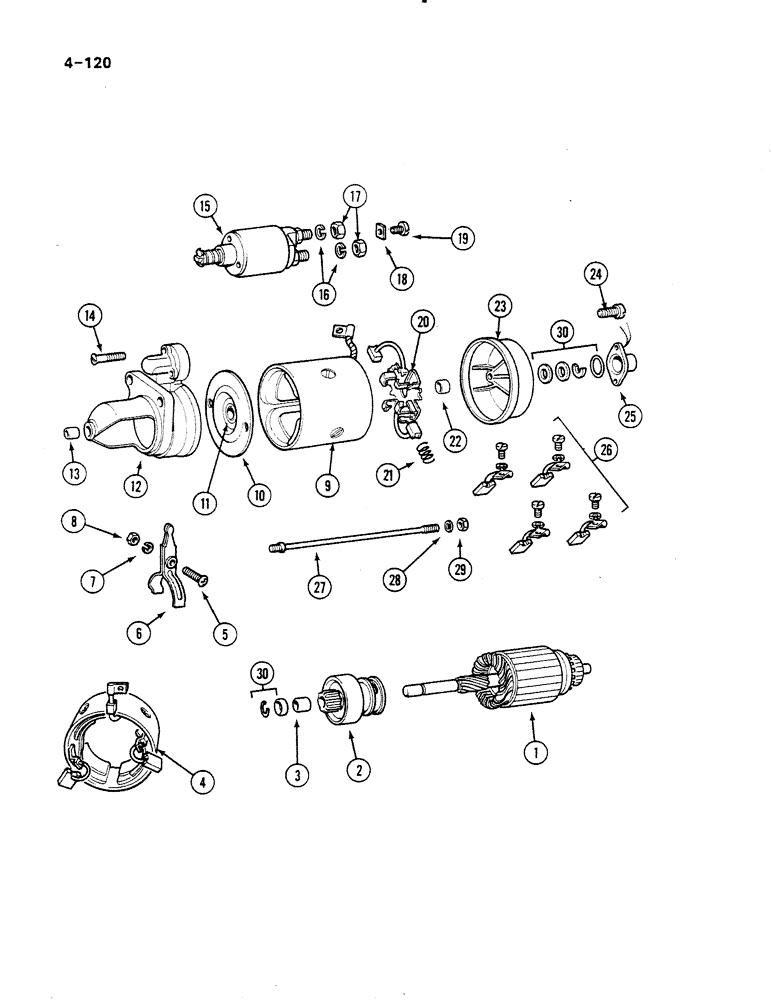

Запчасти Case IH 485 (4-120) - STARTER MOTOR, BOSCH (04) - ELECTRICAL SYSTEMS

529965R93

STARTING MOTOR

MOTOR starting, Bosch, Includes Ref. 1 - 30

1шт.

87297312

REMAN-STARTER

Remanufactured Starter

1шт.

87297313

CORE-STARTER

Return Part Number

1шт.

189330A5GV

STARTER MOTOR,12V, 2.8kW

Value

1шт.

189330A5R

REMAN-STARTER,12V, 2.8kW

Remanufactured Starter 12 volt, 2.8KW

1шт.

189330A5C

CORE-STARTER,12V, 2.8kW

Return Part Number, Starter 12 volt, 2.8KW

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT - hex, 3/8"-16 NC x 1-1/4", G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

3079252R1

ARMATURE

ARMATURE

1шт.

P/N 3079252R1 Armature is Bosch 2-004-004-003. Bosch Armature 2-004-004-091 is P/N 3079548R91.

1шт.

2

3129631R1

DRIVE ASSY.

DRIVE complete

1шт.

3

3079254R1

BUSHING

BUSHING drive

2шт.

4

3079356R1

COIL

COIL field winding, 1 to 4, complete

1шт.

5

3079251R1

BOLT

SCREW, engaging lever pivot

1шт.

6

3078965R1

LEVER

FORK, clutch drive engaging lever

1шт.

7

3079166R1

SPRING WASHER,M8.4 ID x 15 OD x .8 Thk

WASHER lock, 8 mm

1шт.

8

43362

NUT,M8 x 1.25, Cl 10

NUT, M8, Cl 10

1шт.

9

3129639R1

SCREW

SCREW, field coil retaining

4шт.

10

3079253R1

BALL BEARING

BEARING intermediate

1шт.

11

3078967R1

BUSHING

BUSHING bearing

1шт.

12

3129633R1

HOUSING

HOUSING drive end

1шт.

13

3055738R1

BUSHING

BUSHING drive end bearing

1шт.

14

3078974R1

SCREW

SCREW solenoid switch retaining

3шт.

15

3078963R1

SOLENOID SWITCH

SWITCH solenoid

1шт.

16

934075R1

LOCK WASHER,M10

LOCK WASHER, M10

2шт.

17

100016

NUT,M10 x 1.5, Cl 8

NUT, M10, Cl 8

2шт.

18

3132763R1

TERMINAL CONNECTOR

CLAMP terminal

1шт.

19

931342R1

SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8

SCREW machine, pan slotted, M4 x 6 mm, class 8.8

1шт.

20

3079174R1

HOLDER

HOLDER brush

1шт.

21

3079420R1

SPRING

SPRING compression, brush

4шт.

22

3079170R1

BUSHING

BUSHING, commutator end

1шт.

23

3129632R91

END ASSY.

FRAME, commutator end

1шт.

24

3079426R1

SCREW

SCREW fillister head, 5/16 inch

2шт.

25

3079177R1

CAP

CAP, commutator end frame

1шт.

26

3079359R1

KIT

KIT brush set

1шт.

27

3079172R1

STUD

STUD, thru fixing

2шт.

28

3079176R1

WASHER

WASHER plain, thru fixing stud

2шт.

29

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

NUT hex, 6 mm, class 8

2шт.

30

3079173R91

KIT

KIT terminal parts

1шт.

30

87297318

REMAN-STARTER

Remanufactured Starter

1шт.

30

87297319

CORE-STARTER

Return Part Number

1шт.
