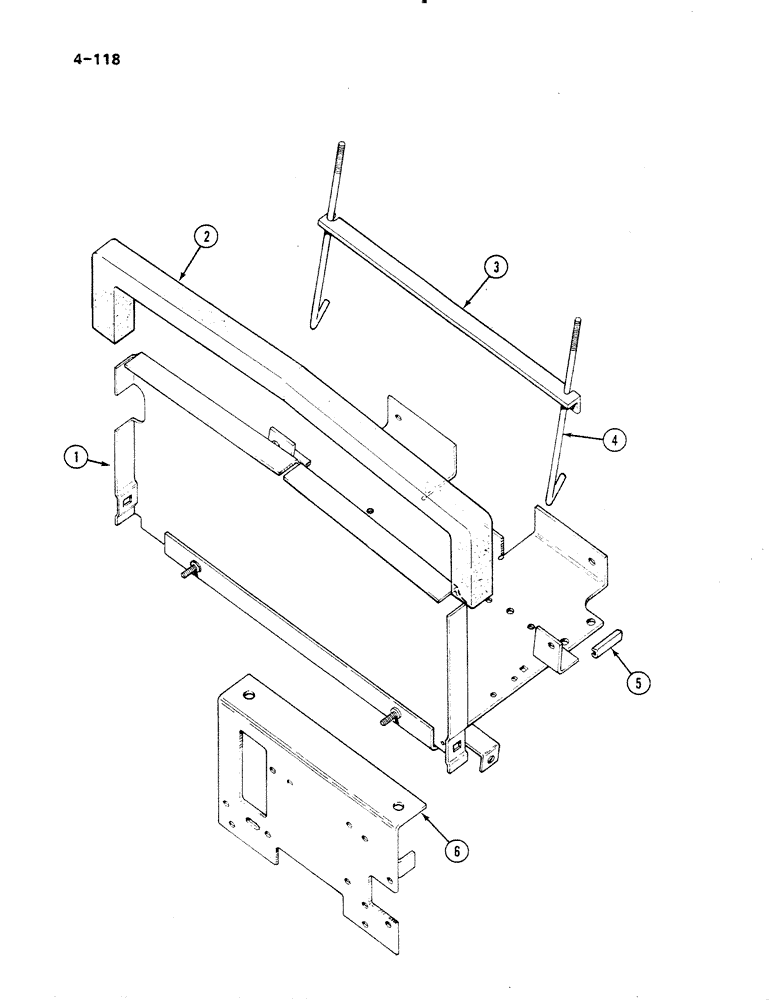

Запчасти Case IH 485 (4-118) - BATTERY TRAY, BATTERY AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

3121626R1

TRAY ASSY.

TRAY battery

1шт.

1

1333063C1

TRAY

battery, Orchard version

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

20893R1

WASHER

plain, 0.344 x 1.00 x 0.105 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

3121629R1

NUT

retainer, Hood

2шт.

2

73217C1

FILLING STRIP

SEAL foam, bulk length, 4 foot roll

1шт.

3

3121178R1

BRACKET

battery hold down

1шт.

4

527605R3

ROD

battery hold down

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER flat, 0.344 x 0.688 x 0.051 inch

2шт.

120376

NUT,5/16"-18, G5

2шт.

5

3113841R1

MOLDING

MOULDING edge.

1шт.

6

3123057R2

SUPPORT ASSY.

SUPPORT battery tray

1шт.

6

1333073C1

SUPPORT

battery tray, Orchard version

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

hex, 3/8 NC x 3/4 inch, grade 5

2шт.

120394

WASHER,3/8", SAE

WASHER flat, 13/32 x 13/16 x 3/64 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.
