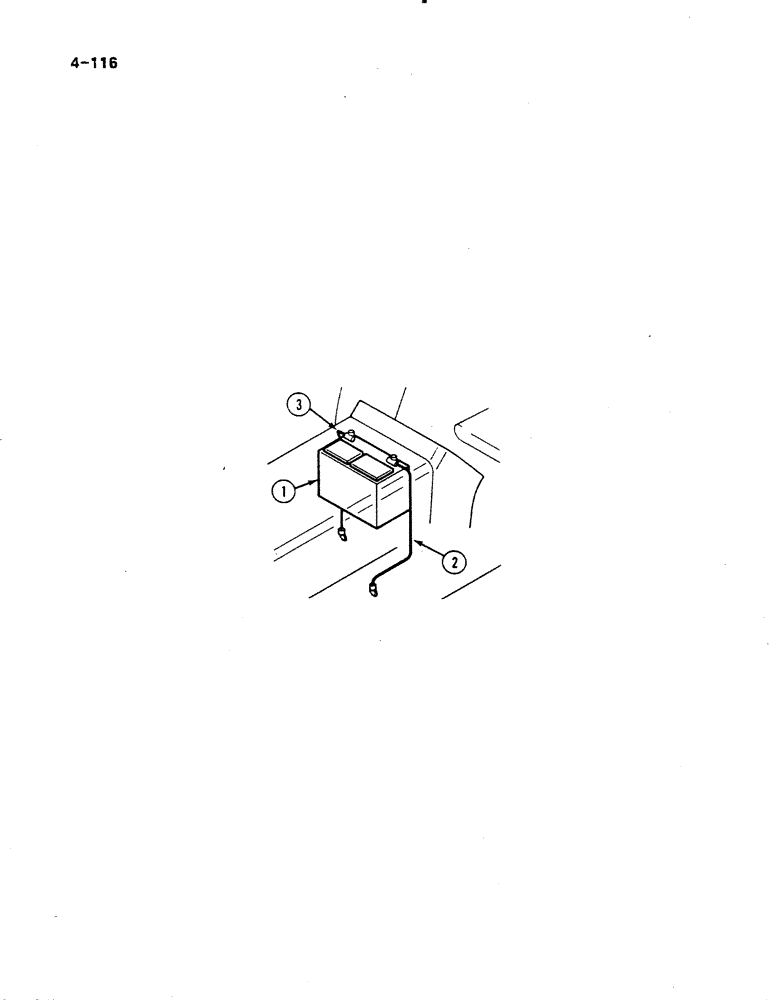

Запчасти Case IH 485 (4-116) - BATTERY AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

A186026

BATTERY, DRY

- dry charge, maintenance free, 12 volt

1шт.

P/N A186026 subs to B2772, can use B2472 if not available, diff. is 1-1/2" shorter in length. Heavy Duty Battery available, A187592

1шт.

2

528301R1

CABLE ASSY.

CABLE, battery to starter, new cable is P/N 1537299C1, includes boot

1шт.

3125853R1

PROTECTOR

BOOT rubber, starter cable

1шт.

3

537504R1

CABLE ASSY.

CABLE, Serial Range: battery-ground

1шт.

3116240R1

CLIP

0.56 diameter, closed

1шт.

450643

SCREW,Hex Hd, #8-32 x 3/8"

BOLT hex, No. 8 x 3/8 inch

1шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

1шт.

225-10108

NUT,#8-32

1шт.
