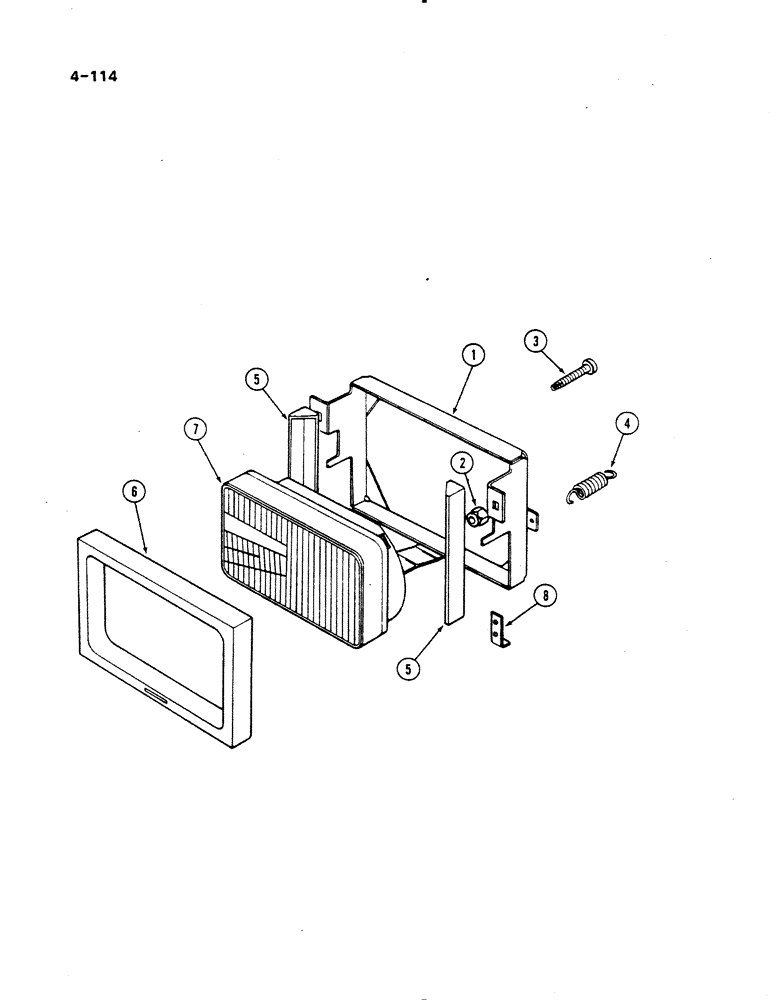

Запчасти Case IH 485 (4-114) - HEADLAMPS (04) - ELECTRICAL SYSTEMS

1

K304824

SUPPORT

HOUSING headlight

2шт.

2

K617503

NUT

nylon

4шт.

3

K603641

SCREW

adjusting

4шт.

4

K658240

SPRING

4шт.

5

K304832

MOLDING

rubber

4шт.

6

K304831

RUBBER INSULATOR

SHROUD headlight, Serial Range: -18001

2шт.

6

99791C1

GUARD

SHROUD headlight, Start Serial: 18001

2шт.

7

A139458

LAMP

head, vertical low

2шт.

8

94353C1

BRACKET

spring

4шт.

99997C1

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 3/4"

SCREW pan, No. 10 x 3/4 inch, Polyseal

4шт.

26303R1

HARDWARE,#10-24

NUT hex, No. 10

4шт.
