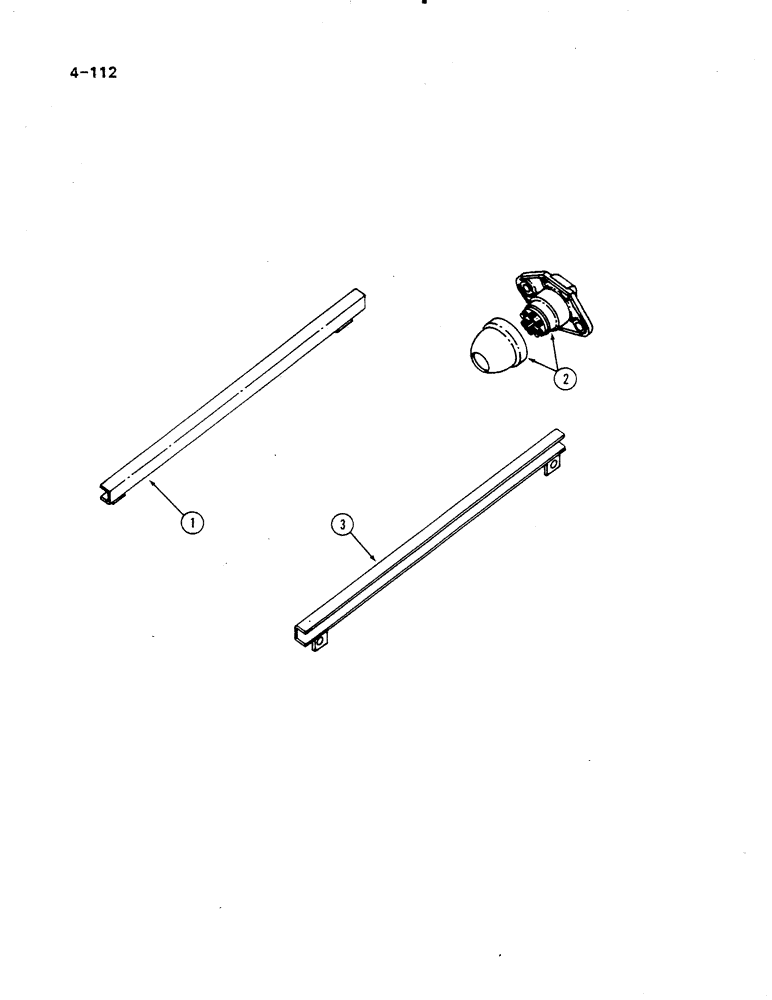

Запчасти Case IH 485 (4-112) - FENDER CONDUIT AND 7 PIN SOCKET (04) - ELECTRICAL SYSTEMS

1

3123182R2

CABLE SHEATH

CONDUIT fender, right

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

2шт.

2

84117C1

SOCKET/RECEPTACLE

SOCKET, 7 pin, with boot, mate to P/N 84117C1 is P/N 121646C1, Serial Range: -18001

1шт.

2

121645C1

MULTIPOLE CONNECTOR,7 Pin

CONNECTOR, 7 Pin, Start Serial: 18001

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER flat, 0.344 x 0.688 x 0.051 inch

2шт.

19296R1

NUT,5/16"-18, G5

hex, 5/16 inch NC

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

hex, 5/16 NC x 1 inch, grade 5

2шт.

3

3123179R1

CABLE SHEATH

CONDUIT fender, left

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

2шт.
