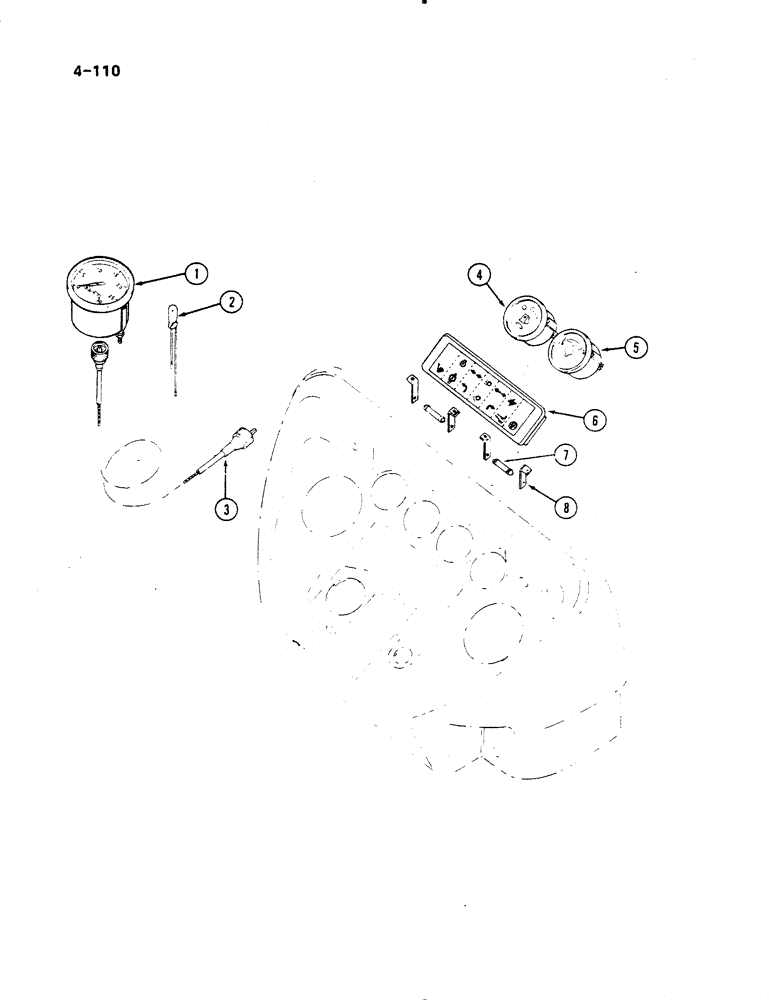

Запчасти Case IH 485 (4-110) - INSTRUMENTS (04) - ELECTRICAL SYSTEMS

1

3125874R92

TACHOMETER

1шт.

2

3123661R1

HOLDER

lamp, wedge, 10 mm

1шт.

529233R1

LAMP

12V, 3W, wedge type, capless

7шт.

3

A39404

CABLE

tachometer drive

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP cable, 1.75 max bundle

2шт.

4

3121239R1

FUEL GAUGE

GAUGE fuel, AC Delco, use only with AC Delco sending unit 529790R1

1шт.

4

3129840R1

FUEL GAUGE

GAUGE fuel, Icknield, use only with Icknield sending unit 3129841R91

1шт.

5

3121240R1

ELECTRICAL GAUGE

GAUGE water temperature, AC Delco, use only with AC Delco sending unit 3073787R1

1шт.

5

3127959R1

ELECTRICAL GAUGE

GAUGE water temperature, Icknield, use only with Icknield sending unit 3127956R1

1шт.

6

1502006C2

HOUSING

HOLDER lamp, warning light, includes lamp

1шт.

529233R1

LAMP

12V, 3W, wedge type, capless

6шт.

7

710196R1

BULB,C5W, 12V, 5W

Festoon C11, 12Vm 5W

2шт.

8

3121705R1

CONTACT HOUSING

lamp

4шт.

3121704R1

SCREW

slotted, No. 4 x 5/16 inch, stainless steel

4шт.

3121703R1

TERMINAL CONNECTOR

TERMINAL, 1/4 inch blade

4шт.

1093205R1

DECAL

speed chart, mph, utility tractors with 14.9-24, 13.6-20 or 14.9-28 rear tires

1шт.

1536456C1

CLUSTER, INSTR.

CLUSTER instrument, digital, new, includes fuel and temp

1шт.
