Запчасти Case IH 485 (4-108) - INSTRUMENT PANEL WIRING, SWITCHES AND FUSE BOX (04) - ELECTRICAL SYSTEMS

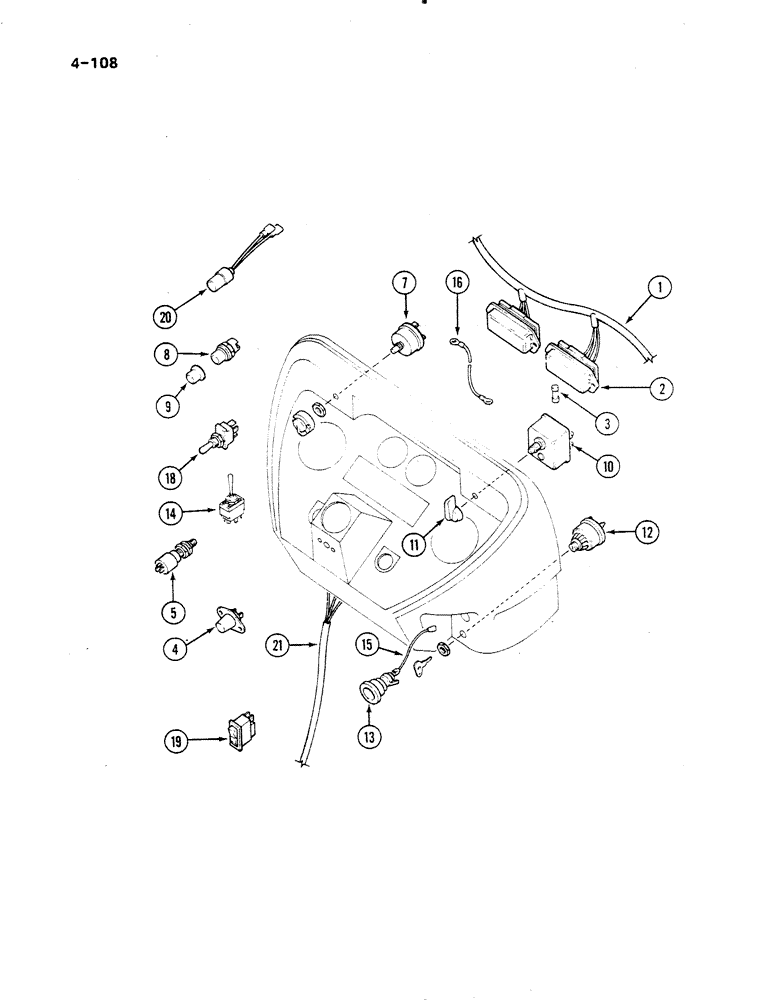

Схема запчастей Case IH 485 - (4-108) - INSTRUMENT PANEL WIRING, SWITCHES AND FUSE BOX (04) - ELECTRICAL SYSTEMS
14
20
12
4
7
18
21
1
11
19
8
15
9
16
3
10
13
5
2

Артикул

Название

Примечание

Количество

1

1500563C95

HARNESS

main

1шт.

S/B 5075 - repair of fuse box

1шт.

3123158R1

PACKAGE

alternator plug connections

1шт.

3129948R1

BOX, FUSE

PACKAGE fuse box

1шт.

2

NSS

NOT SOLD SEPARAT

BOX fuse, order 3129948R1, Includes: P/N 3123157R1 and Ref. 3

2шт.

3123157R1

COVER

fuse box

2шт.

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

3

3115813R1

FUSE

35 amp

6шт.

3

3121403R1

FUSE

35 amp, Serial Range: optional-3115813R1

6шт.

3

3118918R1

FUSE

3AG 5 amp

4шт.

3

3118918R1

FUSE

10 amp, Serial Range: optional-142630

4шт.

4

397940R93

SWITCH

push button

1шт.

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

SCREW pan slotted, No. 10 x 3/8 inch

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

5

92161C2

PARK BRAKE SWITCH

SWITCH plunger, parking brake warning

1шт.

6

NSS

NOT SOLD SEPARAT

Not used in this application

1шт.

7

107200C2

LIGHT SWITCH

SWITCH rotary, basic lighting

1шт.

8

705266R91

HORN

SWITCH horn, Includes: Ref. 9

1шт.

9

1288026C91

COVER horn switch

1шт.

10

131066C91

SWITCH

turn signal and flasher

1шт.

11

71485C1

PACKAGE

KIT, switch handle and hardware

1шт.

12

529800R91

SWITCH ASSY

SWITCH ignition, with key; Use With K962338 Key, Which Replaces 3110259R1 Key

1шт.

13

3121407R92

LIGHTER, CIGARETTE

LIGHTER cigar

1шт.

14

NSS

NOT SOLD SEPARAT

Not used in this application

1шт.

15

92090C1

HARNESS

CABLE cigar lighter

1шт.

16

3123431R1

CABLE

tachometer to fuel gauge ground

1шт.

17

91858C1

TOGGLE SWITCH

SWITCH toggle, 2 speed power shift, Start Serial: 18001

1шт.

18

3125854R1

SWITCH

headlight dip

1шт.

18

3121406R1

SWITCH

headlight dip, Serial Range: optional-3125854R1

1шт.

NLS

NO LONGER SERVICED

plain, 3/8 inch

1шт.

19

245909C1

SWITCH ASSY

SWITCH rocker, Start Serial: 18001

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

82525C1

DECAL

DECAL symbol, 4WD switch, green

1шт.

20

3125984R2

FLASHER UNIT

UNIT flasher, park brake warning

1шт.

21

1500963C1

HARNESS

instrument panel

1шт.

3072070R91

FLASHER SWITCH

SWITCH, heavy duty, turn signal and flasher

1шт.

92389C1

INDICATOR LIGHT

FLASHER, turn signal

1шт.

Выбрано товаров: 39
