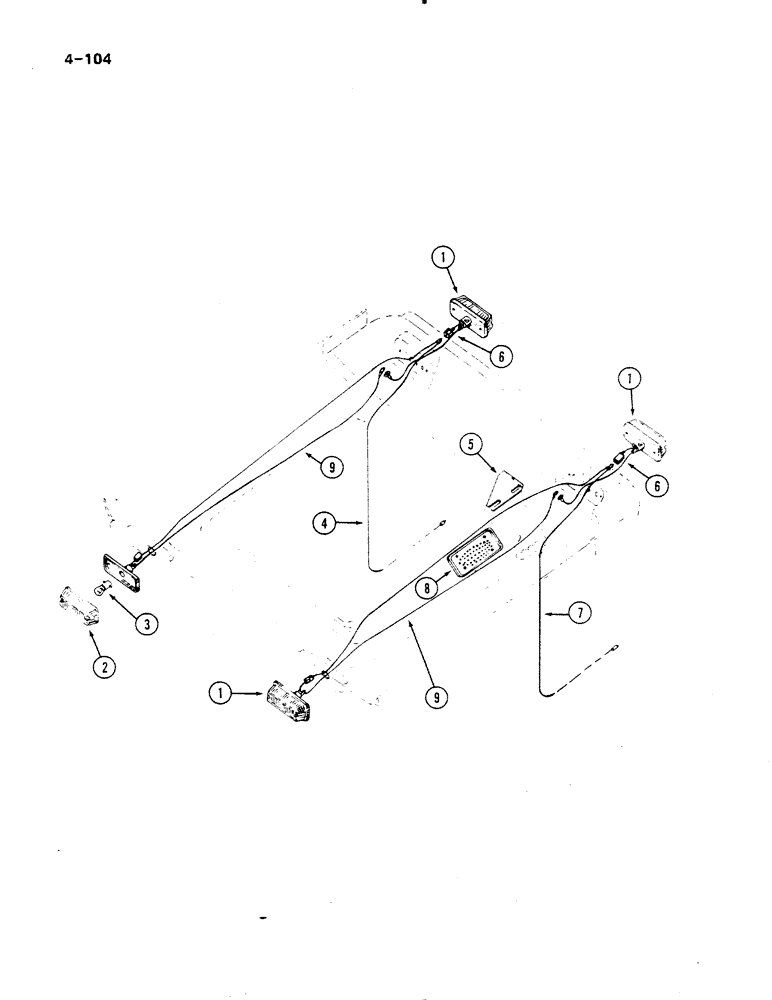

Запчасти Case IH 485 (4-104) - R.O.P.S. CANOPY (04) - ELECTRICAL SYSTEMS

1

130882C91

LAMP

LIGHT warning, Includes Ref. 2 and 3

4шт.

27619R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/2"

SCREW tapping, pan cross recess, No. 10 x 2-1/2 inch

8шт.

684322R1

SPRING NUT

U-type spring

8шт.

2

130883C1

LENS

amber

1шт.

3

9417866

BULB,C6, #1156, 12.8V

LAMP

1шт.

4

118384C1

CABLE

warning light, right

1шт.

5

118522C1

BRACKET

mounting, radio

1шт.

174878

WASHER

lock, 1/4 inch

1шт.

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

495-11053

WASHER,1/2", SAE

flat, 0.531 x 1.063 x 0.074 inch

2шт.

6

111264C3

CABLE

ground, rear lights

1шт.

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

2шт.

120391

WASHER,#10

flat, 0.219 x 0.5 x 0.036 inch

2шт.

138479

PLUG

WASHER lock, external tooth, No. 10

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

7

118383C1

CABLE

warning light, left

1шт.

8

118258C1

PANEL

GRILLE speaker

2шт.

28058R1

SCREW

oval, cross recess machine No. 8 x 3/4 inch

8шт.

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

hex, No. 8, with lock washer

8шт.

9

118219C1

CABLE

ground, front lights

2шт.

118523C2

CABLE

power, radio

1шт.
