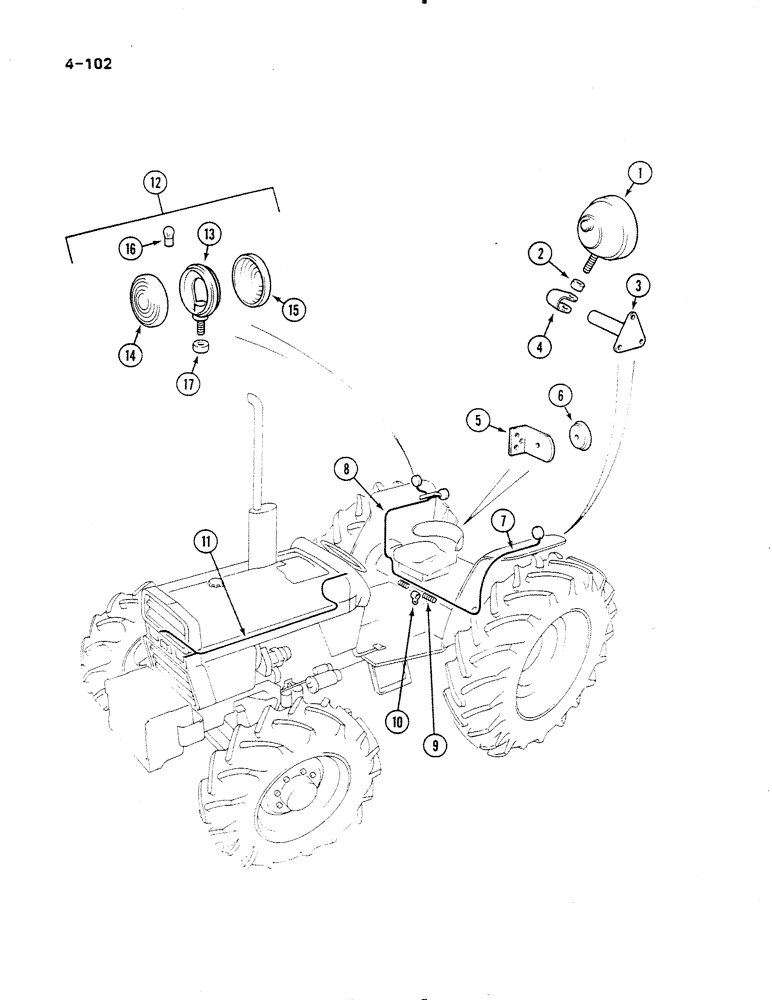

Запчасти Case IH 485 (4-102) - TRACTOR LIGHTING AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

387729R92

LIGHT ASSY.

LIGHT combination, rear and tail, includes light, lamp and retainer

1шт.

80627C1

LIGHT ASSY.

LIGHT, with bulb

1шт.

33686

BULB

LAMP, type C-6, trade No. 1141

1шт.

676078R1

RETAINER

light, shockproof

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

365503R1

SPACER

combination light

1шт.

3

401471R1

POST

combination light

1шт.

3

1333098C1

POST

combination light, Orchard version

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

hex, 3/8 NC x 5/8 inch, grade 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

4

350920R1

CLAMP

combination light

1шт.

5

3125247R2

BRACKET

reflector

2шт.

5

1333043C1

BRACKET

reflector, Orchard version

2шт.

260-5458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW tapping, pan cross recess, No. 10 x 1/2 inch

2шт.

6

3118665R1

REFLECTOR

red, includes washer

2шт.

3112698R1

WASHER

cup, nylon, Serial Range: optional-3118665R1

2шт.

7

3123677R1

HARNESS

fender, left

1шт.

8

3123678R2

HARNESS

fender, right

1шт.

9

1280346C1

CONDUIT

INSULATION, convolute conduit, version with R.O.P.S.

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP harness, version with R.O.P.S.

1шт.

11

1500563C95

HARNESS

main, see Figure 4-108

1шт.

12

67538C92

HEADLIGHT

LIGHT flasher

2шт.

9417866

BULB,C6, #1156, 12.8V

LAMP

2шт.

12

3123675R92

HEADLIGHT

LIGHT flasher, order light assembly 67538C92, Includes: Ref. 14 thru 16

2шт.

13

NSS

NOT SOLD SEPARAT

HOUSING flasher light, order assembly 67538C92, includes ring

1шт.

899282R1

O-RING

RING rubber, sealing

2шт.

493-21046

LOCK WASHER,Int Tooth, 7/16"

WASHER lock, internal tooth, 7/16 inch

2шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

14

3112682R1

LENS

amber, rear

1шт.

15

3112683R1

LENS

amber, front

1шт.

15

3112860R1

LENS

red, front

1шт.

16

3025210R91

BULB

LAMP, 12V, 21W SCC

1шт.

17

3073103R1

SPACER

light mounting, seat

2шт.

3113202R1

PLUG

blanking, 7/16 inch NF, plough lamp

1шт.
