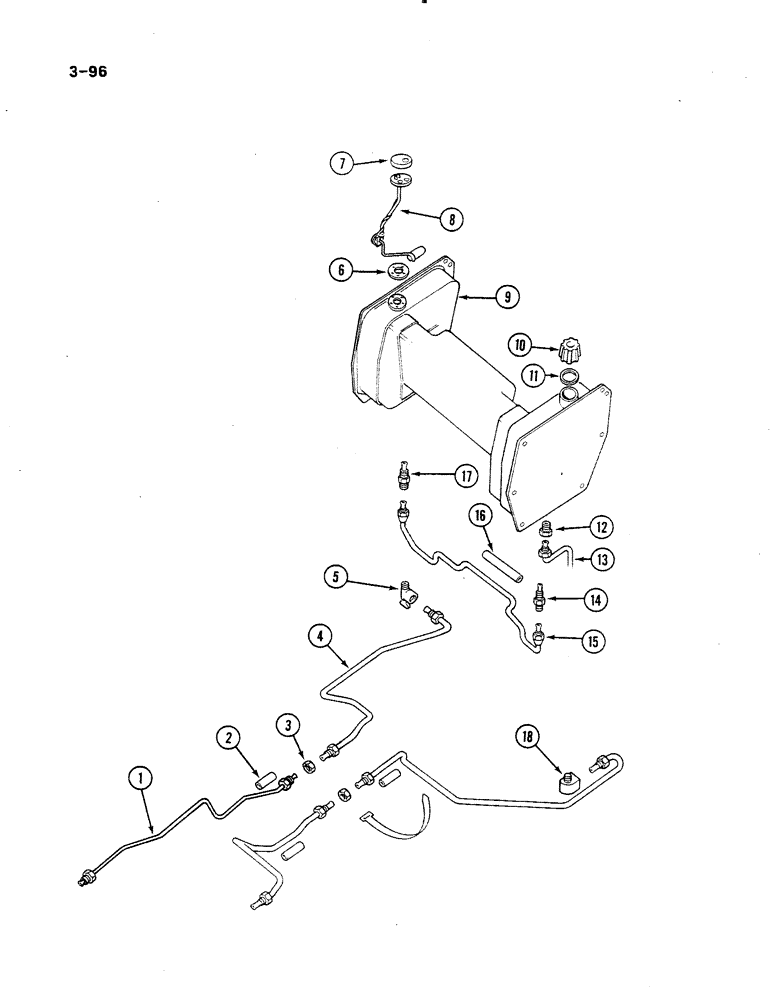

Запчасти Case IH 485 (3-096) - FUEL TANK (03) - FUEL SYSTEM

1

3116238R3

PIPE,787.4, 142.24 mm Length

union to filler, Replaced by: 1536103C1 tube assembly

1шт.

2

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

3шт.

3

442337

NUT

UNION 5/16 inch OD tube

2шт.

4

3129561R1

PIPE,8 mm OD, 932.2, 259.1 mm Length

TUBE, union to shut off valve

1шт.

5

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

shut off

1шт.

6

528359R1

GASKET

sending unit

1шт.

7

528360R2

COVER

sending unit

1шт.

8

529790R1

SENDER UNIT

TRANSMITTER fuel gauge, AC Delco, used with AC Delco gauge 3121239R1

1шт.

8

3129841R91

FUEL GAUGE

TRANSMITTER fuel gauge, Icknield, used with Icknield gauge 3129840R1, didn't change with new cluster

1шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

hex, No. 10 x 1/2 inch,Course threads

4шт.

451625

SCREW

hex, No. 10 x 1/2 inch

1шт.

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

pan, cross recess, No. 10 x 3/8 inch

1шт.

533199R1

SEALING WASHER

sending unit cover

4шт.

796002R1

COPPER WASHER

WASHER copper

1шт.

9

536035R93

FUEL TANK

TANK fuel, with filler cap, Includes: Ref. 10 and 11

1шт.

9

1333074C1

TANK

fuel, with filler cap, orchard version, Includes: Ref. 10 and 11

1шт.

120376

NUT,5/16"-18, G5

8шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

hex, 5/16 NC x 5/8 inch, grade 5

6шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

hex, 3/8 NC x 5/8 inch, grade 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

hex, 5/16 NC x 1 inch, grade 5

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch, grade 5, ZND

2шт.

10

536845R1

PLUG

CAP fuel tank filler, cap with threads is P/N 1500254C1, Includes: Ref. 11

1шт.

11

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

filler cap, fuel tank

1шт.

12

222-1014

HYD CONNECTOR,1/2"-20 Inv Fl x 1/8" NPT

UNION, 1/2 inch NF x 1/8 inch NPTF, used with underslung exhaust, Serial Range: -18001

1шт.

13

539938R1

VENTILATION PIPE

TUBE tank breather, used with underslung exhaust, Serial Range: -18001

1шт.

539940R1

CLIP

breather line, Serial Range: -18001

1шт.

NLS

NO LONGER SERVICED

BOLT hex, 5/8 NC x 3/4 inch

1шт.

14

1502069C1

PIPE

clearance

1шт.

15

1502067C2

PIPE,0.312" OD, 811.5, 96.5 mm Length

TUBE crossover

1шт.

15

1333089C1

PIPE

TUBE crossover, orchard version

1шт.

16

530107R1

FUEL HOSE,0.31" ID x 10.00"

Balance Tube Spacer 0.31" ID x 10.00"

1шт.

17

1502069C1

PIPE

clearance

1шт.

18

137422

ELBOW

90 degree

1шт.
