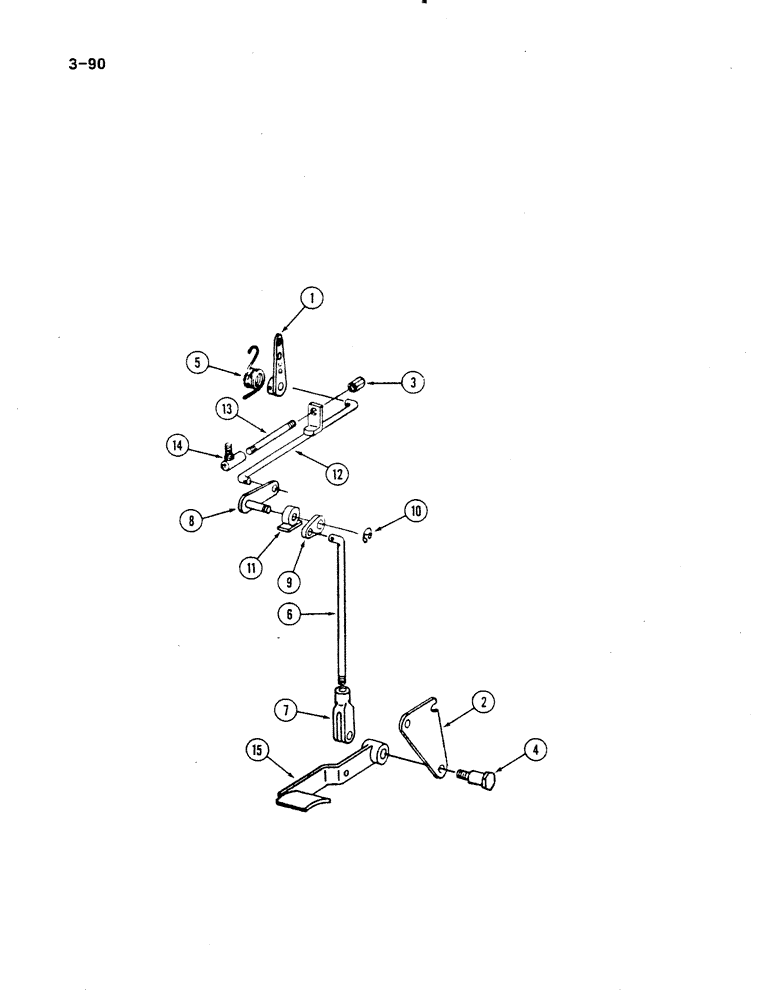

Запчасти Case IH 485 (3-090) - FOOT PEDAL ACCELERATOR (03) - FUEL SYSTEM

1

539572R2

LEVER

idler arm

1шт.

2

528754R2

SUPPORT

BRACKET support, foot accelerator pedal

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

hex, 3/8 NC x 3/4 inch, grade 5

2шт.

3

528776R1

NUT

swivel, foot accelerator pick-up rod

1шт.

4

532965R3

BOLT,3/8" - 16 x 1.7"

foot pedal pivot

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

5

539012R1

SPRING

torsion

1шт.

6

528759R5

ROD

pull, foot accelerator

1шт.

6

1333120C1

ROD

pull, foot accelerator, orchard version

1шт.

NLS

NO LONGER SERVICED

PIN cotter, 1/16 x 1/2 inch

2шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

7

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS adjustable, 1/4 inch NF

1шт.

7

1500842C1

YOKE

CLEVIS adjustable, Serial Range: optional-10403

1шт.

138083

PIN

clevis, 1/4 x 25/32 inch

1шт.

103361

PIN, SPLIT (COTTER)

PIN cotter, 1/16 x 1/2 inch

1шт.

8

528760R3

ARM

bellcrank

1шт.

9

528764R3

LEVER

bellcrank

1шт.

10

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

11

532967R2

ARM

actuating

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

12

528767R1

ROD ASSY.

ROD pull, bellcrank

1шт.

NLS

NO LONGER SERVICED

PIN cotter, 1/16 x 1/2 inch

2шт.

13

528775R3

ROD

pick up, foot accelerator

1шт.

13

1333041C1

ROD

pick-up, foot accelerator, orchard version

1шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

2шт.

14

19318R1

BALL JOINT

JOINT ball, 1/4 inch NF, type F

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

hex, 1/4 inch NF, grade 5

1шт.

15

69409C91

PACKAGE

KIT service, foot pedal accelerator, includes parts listed below and instructions

1шт.

NSS

NOT SOLD SEPARAT

PEDAL

1шт.

NSS

NOT SOLD SEPARAT

PAD

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS fitting

1шт.
