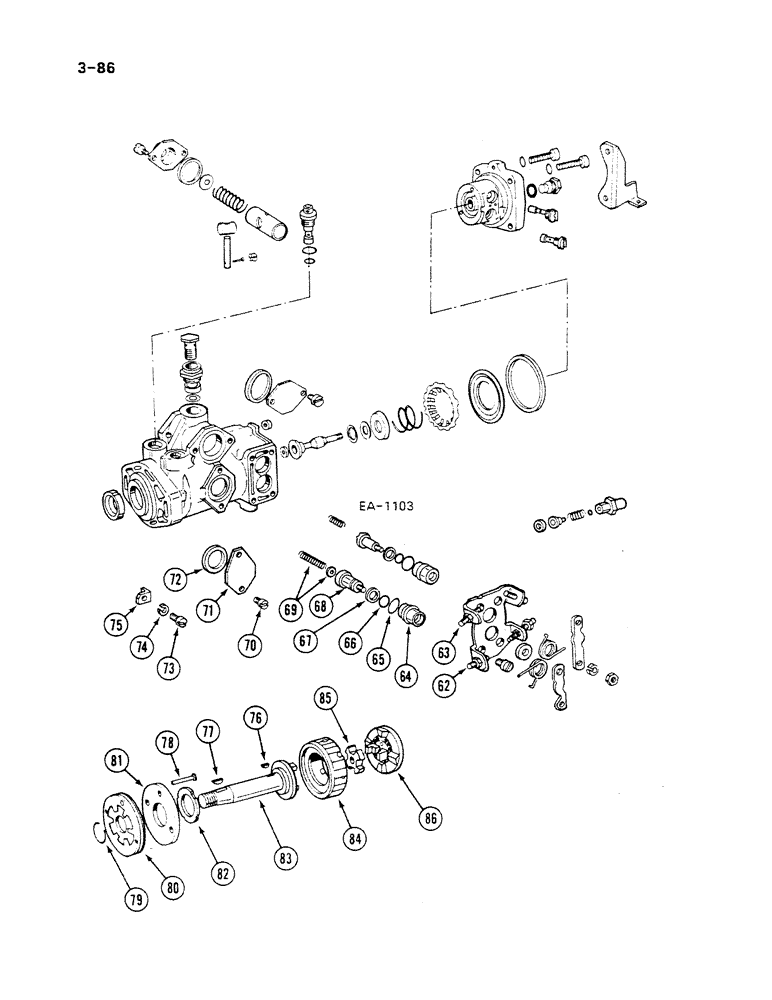

Запчасти Case IH 485 (3-086) - FUEL INJECTION PUMP, VA, BOSCH INJECTION C.R. PUMP (CONTD) (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
3144222R93
PUMP, FUEL INJECTION
PUMP fuel injection, VA 3/100H 1090 CR43/3, Includes: Ref. 62 thru 86 and parts in Figures 3-080 thru 3-084
1шт.
62
3059074R1
SCREW
stop
1шт.
86500688
NUT,Hex, M6 x 1.0, Cl 10.9
hex, 6 mm, class 8, stop screw
1шт.
63
3136136R1
SCREW
stop
1шт.
86500688
NUT,Hex, M6 x 1.0, Cl 10.9
hex, 6 mm, class 8, stop screw
1шт.
64
3078524R1
BUSHING
control shaft plunger
1шт.
65
785602R1
O-RING
control plunger and throttle shaft bushing
1шт.
66
3078363R1
O-RING
control plunger shaft
1шт.
67
3078523R1
WASHER
control plunger shaft
1шт.
68
3078521R1
SHAFT
control plunger
1шт.
69
3078610R1
PACKAGE
KIT service, control plunger spring
1шт.
70
931330R1
SCREW,M6 x 1 x 12mm, Cl 8.8
machine, pan head, M6 x 12 mm, class 8.8
2шт.
71
3078486R1
COVER
timing window
1шт.
72
3078485R1
RING
packing, timing window cover
1шт.
73
931326R1
SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8
machine, pan head, M4 x 5 mm
1шт.
74
933982R1
WAVE WASHER,M4.3 ID x 9 OD x .5 Thk
WASHER lock, 4 mm
1шт.
75
3132598R1
INDICATOR
POINTER timing
1шт.
76
3132395R1
KEY
Woodruff
1шт.
77
3079101R1
WOODRUFF KEY
KEY Woodruff
1шт.
78
3078477R1
BOLT,CSK
supporting ring
2шт.
79
3078474R1
RING
retaining
1шт.
80
3078475R91
PUMP
charge
1шт.
81
3078476R1
RING
support, charge pump
1шт.
82
3078479R1
THRUST WASHER
thrust roller retainer
1шт.
83
3078473R1
SHAFT
drive
1шт.
84
3078550R91
PUMP
RETAINER, roller assembly
1шт.
85
3059007R1
DISC
cam face, cross type
1шт.
86
3078696R1
CAM
face
1шт.
3078526R91
GASKET KIT
KIT gasket, injection pump
1шт.
3078485R1
RING
packing, timing window cover
1шт.
3078488R1
RING
packing
2шт.
3078358R1
O-RING
regulator valve
1шт.
3078535R1
O-RING
regulator valve
1шт.
3078966R1
O-RING
1шт.
3078354R1
O-RING,2mm Thk x 6.5mm ID
throttle shaft
1шт.
785602R1
O-RING
control plunger and throttle shaft bushing
2шт.
3078363R1
O-RING
control plunger shaft
1шт.
Выбрано товаров: 37
