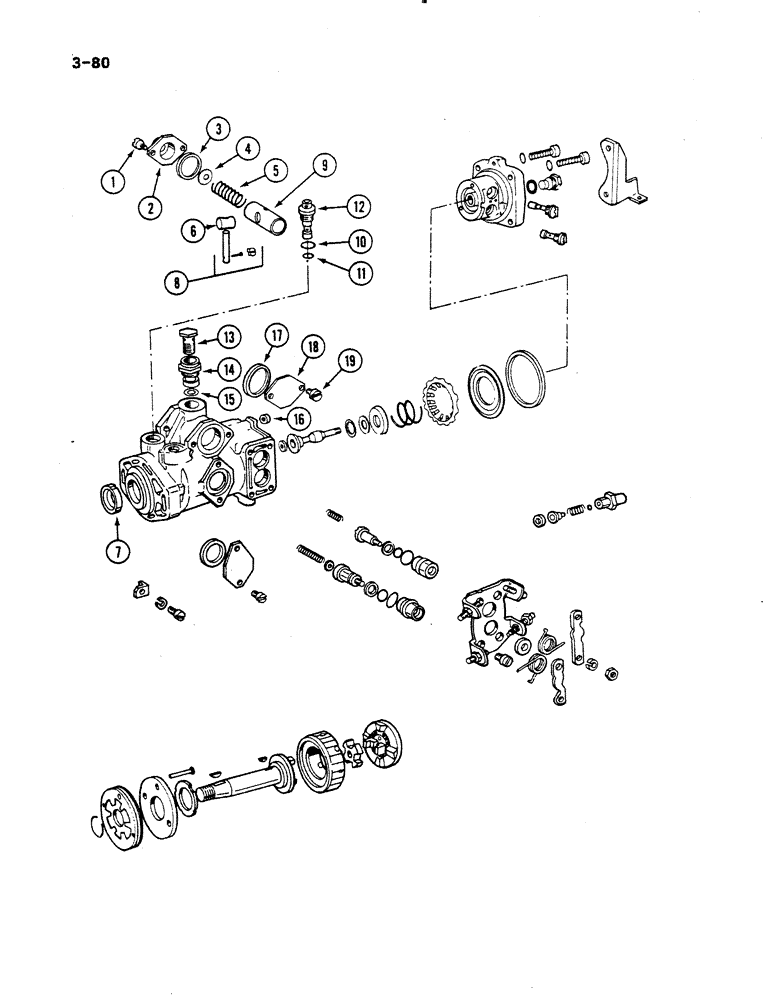

Запчасти Case IH 485 (3-080) - FUEL INJECTION PUMP, VA, BOSCH INJECTION C.R. PUMP (03) - FUEL SYSTEM

3144222R93

PUMP, FUEL INJECTION

PUMP fuel injection, VA 3/100H 1090 CR43/3, Includes Ref. 1 - 19 and parts in Figures 3-082 thru 3-086

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

flat, 5/16 inch

2шт.

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

2шт.

1

439189C1

SCREW

pan head, M6 x 15 mm

2шт.

2

3078489R1

COVER

advance housing

1шт.

3

3078488R1

RING

packing

1шт.

4

3078528R1

THRUST WASHER

thrust, 0.6 mm

1шт.

4

3078529R1

THRUST WASHER

thrust, 0.8 mm

1шт.

4

3078530R1

THRUST WASHER

thrust, 1.0 mm

1шт.

4

3078531R1

THRUST WASHER

thrust, 1.2 mm

1шт.

4

3078532R1

THRUST WASHER

thrust, 1.4 mm

1шт.

4

3078533R1

THRUST WASHER

thrust, 3.0 mm

1шт.

5

3078565R1

SPRING

advace piston

1шт.

6

3078482R1

SLIDE

advance piston

1шт.

7

3078355R2

OIL SEAL

oil drive shaft

1шт.

8

3078481R1

PIN

connecting, auto advance

1шт.

9

3078572R91

HOUSING

complete, with advance piston

1шт.

10

3078358R1

O-RING

regulator valve

1шт.

11

3078535R1

O-RING

regulator valve

1шт.

12

3078646R1

VALVE

regulator

1шт.

13

3059086R1

BANJO BOLT

SCREW hollow, pump inlet union

1шт.

14

3078484R1

VALVE

overflow

1шт.

15

3078483R1

O-RING,2.5mm Thk x 15mm ID

union adaptor, advance housing

1шт.

16

3078487R1

O-RING

packing

1шт.

17

3078488R1

RING

packing

1шт.

18

3078486R1

COVER

timing window

1шт.

19

931585R1

BOLT,M6 x 15mm, Cl 10.9

hex, M12 x 30 mm, class 10.9

2шт.
