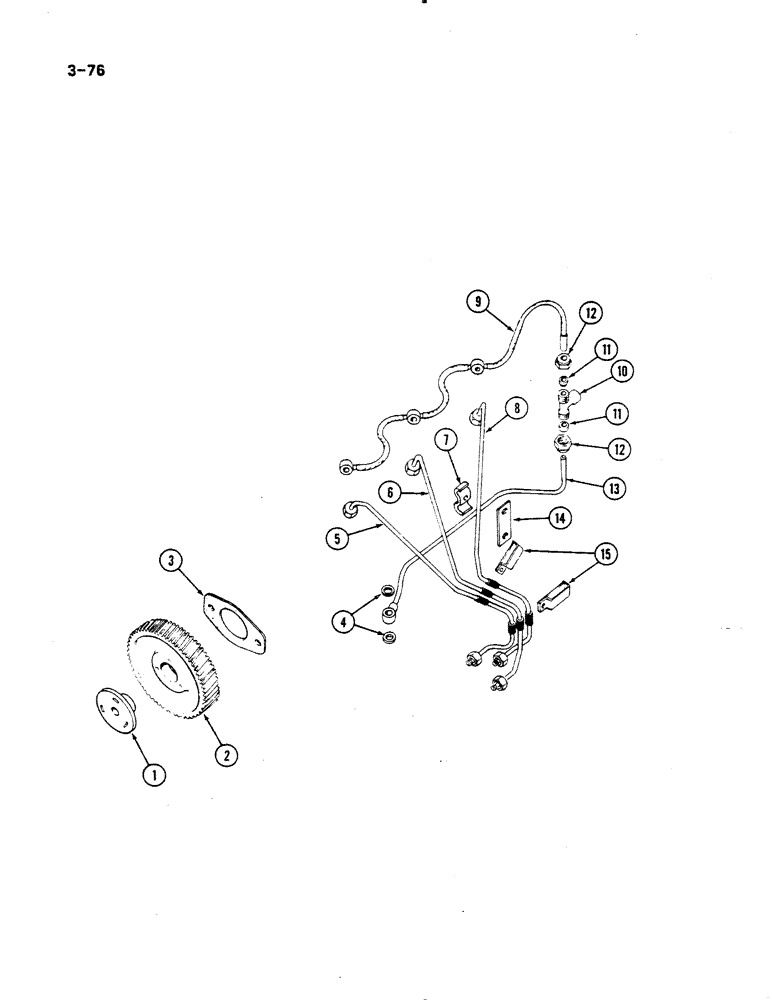

Запчасти Case IH 485 (3-076) - FUEL INJECTION TUBES (03) - FUEL SYSTEM

1

3055067R2

HUB

injection pump gear

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

hex, 5/16 NC x 3/4 inch, grade 8

3шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

flat, 8 mm

3шт.

2

3056885R3

PINION

GEAR injection pump

1шт.

3

3055384R1

GASKET

pump, fuel injection

1шт.

4

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

5

3218136R1

PIPE

TUBE injection, No. 1 cylinder

1шт.

6

3218137R1

FUEL TUBE

TUBE injection, No. 2 cylinder

1шт.

7

3055386R1

CLAMP

CLIP fuel line

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

3218138R1

FUEL TUBE

TUBE injection, No. 3 cylinder

1шт.

9

3218126R1

TUBE

HOSE line leak

1шт.

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

hollow, inlet union

3шт.

933696R1

SEALING RING,M6 x 10 x 1

RING - sealing, flat, 6 x 10 mm

6шт.

10

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

tee, special

1шт.

11

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

compression

2шт.

12

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT coupling

2шт.

13

3144414R1

PIPE

overflow, for use with VA injection pump

1шт.

13

1329102C1

LINE

PIPE overflow, for use with VE injection pump

1шт.

14

3132174R1

LINK

fuel line clamping

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

3050221R1

LOCK WASHER

lock, 3/8 inch

1шт.

15

3132766R1

CLAMP

pipe

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

hex, 6 mm, class 8

2шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

machine, pan head, M6 x 12 mm, class 8.8

2шт.
