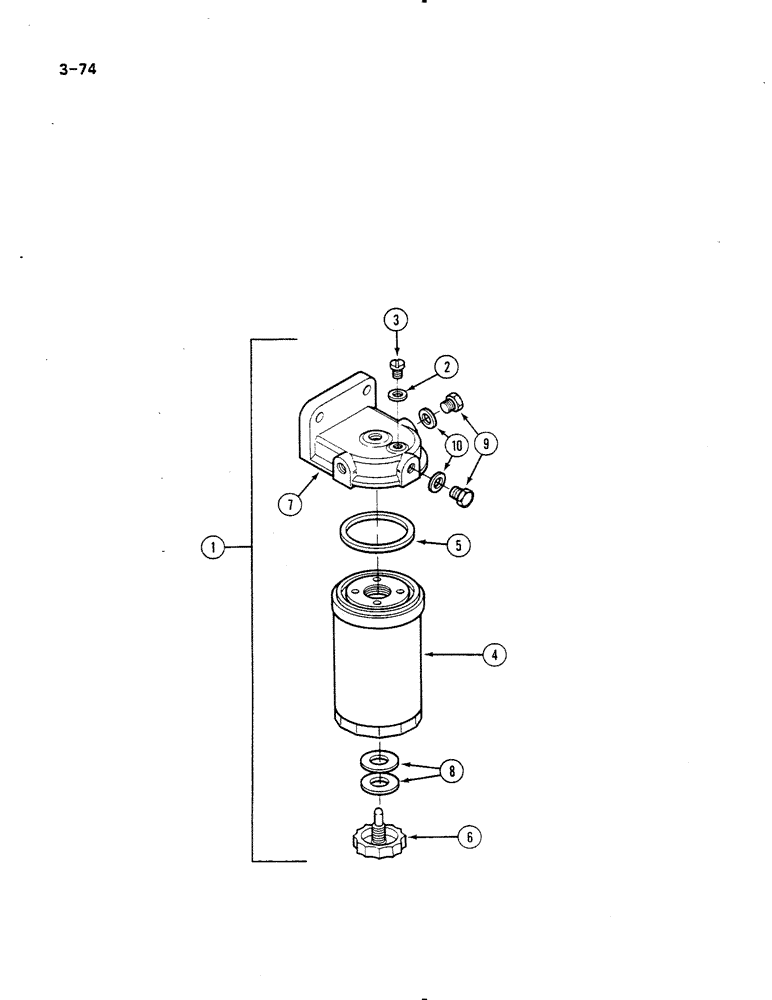

Запчасти Case IH 485 (3-074) - FUEL FILTER 3132452R92 (03) - FUEL SYSTEM

1

3132452R92

FILTER

fuel, Includes Ref. 2 - 10

1шт.

2

757760R1

RING

packing

1шт.

3

3144780R1

SCREW

1шт.

4

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

ELEMENT filter, with seal

1шт.

5

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING packing

1шт.

6

3228407R1

PLUG

drain, 7.8 mm

1шт.

7

3132198R2

COVER

HEAD filter

1шт.

8

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

sealing

2шт.

9

712616R1

PLUG,Hex, M14 x 1.5

2шт.

10

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.
