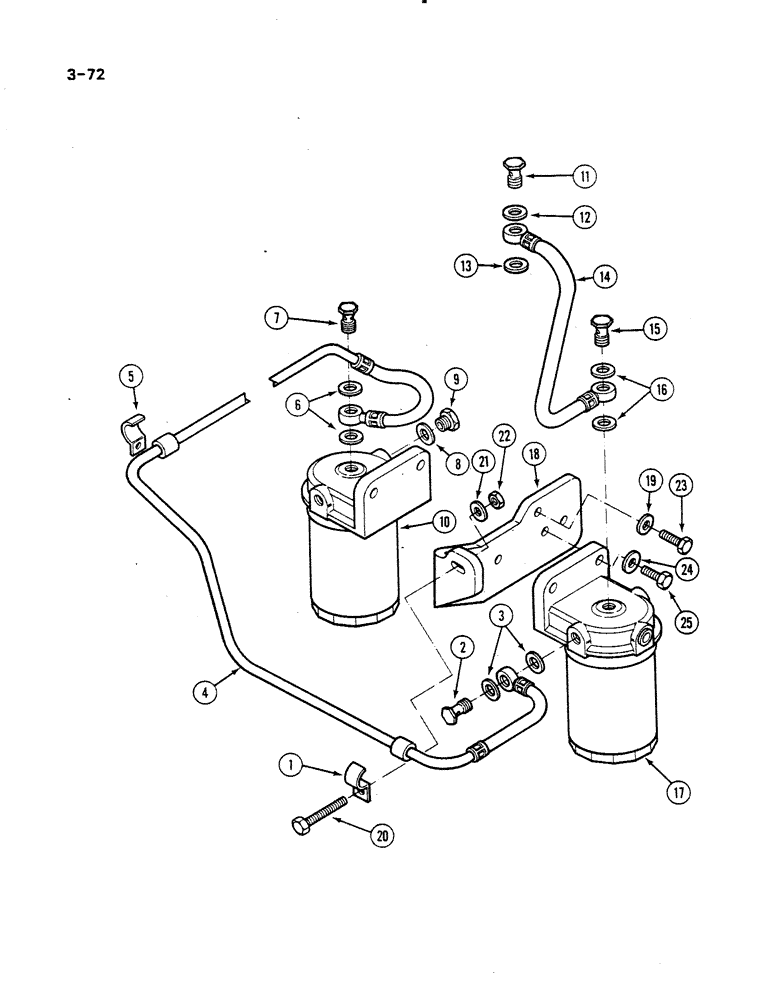

Запчасти Case IH 485 (3-072) - FUEL FILTER AND CONNECTIONS FOR VE INJECTION PUMP (03) - FUEL SYSTEM

1

3056927R1

CLAMP

CLIP fuel line

1шт.

2

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW hollow

1шт.

3

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

4

3228065R1

FUEL HOSE

1шт.

5

711733R1

CLIP

fuel line

1шт.

6

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

7

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW hollow

1шт.

8

933610R1

SEALING RING,M14 x 18 x 1.8

1шт.

9

3056600R1

ADAPTER

ADAPTOR filter

1шт.

10

3132452R92

FILTER

fuel, see Figure 3-074

1шт.

11

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW hollow

1шт.

12

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

1шт.

13

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

14

3132324R1

HOSE,8mm ID x 275mm L

PIPE fuel

1шт.

15

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW hollow

1шт.

16

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

17

3132452R92

FILTER

fuel, see Figure 3-074

1шт.

18

1329085C1

SUPPORT

BRACKET fuel filter

1шт.

19

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

20

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

21

25543R1

WASHER,.344" x 11/16" x .098", HDN

hardend, 5/16 inch

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

1шт.

23

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

hex, 3/8 NC x 7/8 inch, grade 5

1шт.

24

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Disc M10.2 ID x 20 OD x 1.1 Thk

2шт.

25

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

hex, 3/8 NC x 7/8 inch, grade 5

2шт.
