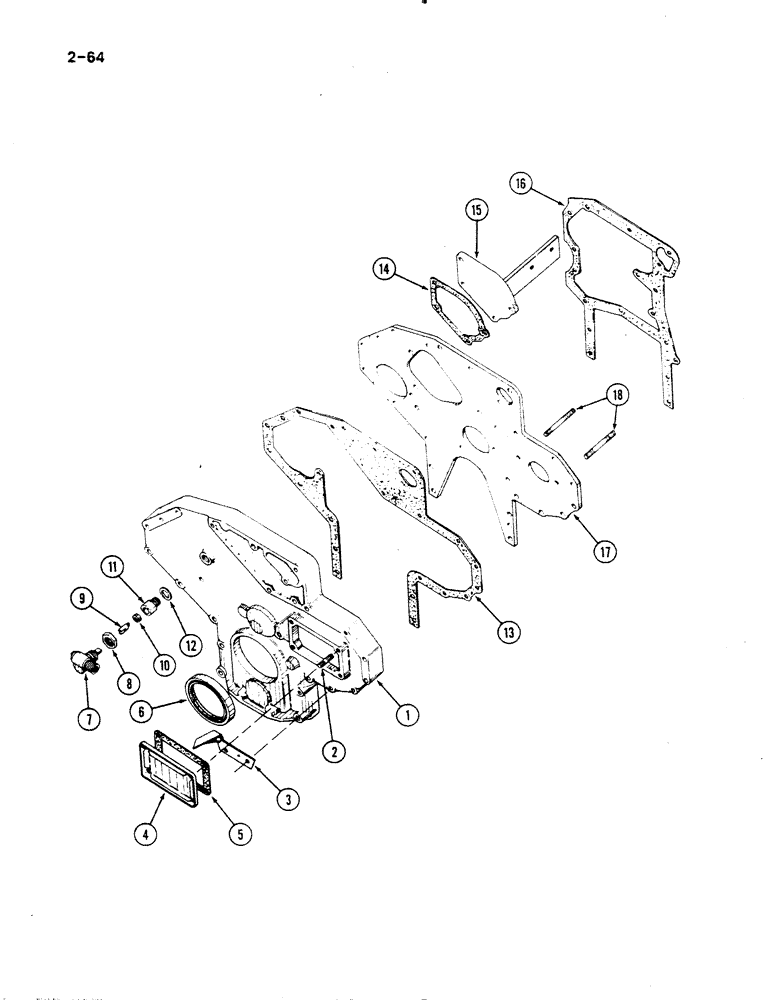

Запчасти Case IH 485 (2-064) - CYLINDER BLOCK FRONT COVER (02) - ENGINE

1

3136057R14

COVER ASSY

COVER - cylinder block front, Includes: Ref. 2

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

9шт.

179827

FRONT AXLE

2шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC, grade 5

7шт.

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

5шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

6шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

3055242R1

STUD

- front cover

4шт.

3

3136252R11

INDICATOR

- timing, Replaced by: 3136040R21

1шт.

4

3055140R1

COVER

- injection pump

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC, grade 5

4шт.

131402H

WASHER

- plain, 0.344 x 0.562 x 0.054 inch

4шт.

5

3138640R1

GASKET

- injection pump cover

1шт.

6

3228133R93

SEAL KIT

KIT service, crankshaft oil seal, includes retainer, seal, O-ring and pins listed below and instructions

1шт.

NSS

NOT SOLD SEPARAT

RETAINER distance

1шт.

NSS

NOT SOLD SEPARAT

SEAL radial lip

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

55 x 61 mm

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

932224R1

DOWEL,M4 x 32, Oval

PIN dowel, 4 x 32 mm

1шт.

932652R1

DOWEL,4mm OD x 28mm L

PIN dowel, 4 x 28 mm

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

7

3055982R93

DRIVE, ANGLE

DRIVE angle

1шт.

8

3132116R1

NUT

hex, M18

1шт.

9

3056986R1

SUPPORT

COUPLING drive, angle

1шт.

10

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

SEAL oil, radial lip type

1шт.

11

3055983R1

REDUCER FITTING

SPACER

1шт.

12

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

13

3055994R1

GASKET

crankcase front cover

1шт.

14

3132541R1

GASKET

closing cover

1шт.

15

3138776R91

COVER

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

4шт.

16

3055239R1

GASKET

front plate

1шт.

17

3055996R11

PLATE ASSY.

PLATE cylinder block, front cover, Includes: Ref. 18

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

- hex, 5/16 NC x 5/8 inch, grade 5

7шт.

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

7шт.

20990R1

PLUG

hex, 3/8 inch NPTF

1шт.

18

3055065R1

STUD

5/16 x 39 mm

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

2шт.
