Запчасти Case IH 485 (2-060) - SERVICE KITS (02) - ENGINE

3218463R95

ENGINE ASSEMBLY

ENGINE, D-179, complete service, consists of all engine parts except next three items for belt, blade and muffler and exhaust pipe

1шт.

NSS

NOT SOLD SEPARAT

BELT fan, complete service engine

1шт.

NSS

NOT SOLD SEPARAT

BLADE fan, complete service engine

1шт.

NSS

NOT SOLD SEPARAT

MUFFLER AND EXHAUST PIPE, complete service engine

1шт.

3144025R93

SKELETON ENGINE

ENGINE ASSEMBLY short block, service D-179, consists of next five items, Serial Range: camshaft-piston

1шт.

NSS

NOT SOLD SEPARAT

CAMSHAFT, with gear and bearings, engine short block

1шт.

NSS

NOT SOLD SEPARAT

CONNECTING ROD, with bearings, engine short block

1шт.

NSS

NOT SOLD SEPARAT

BLOCK ASSEMBLY, engine short block

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT, with bearings, engine short block

1шт.

NSS

NOT SOLD SEPARAT

PISTON, with pins and rings, engine short block

1шт.

1

3136798R98

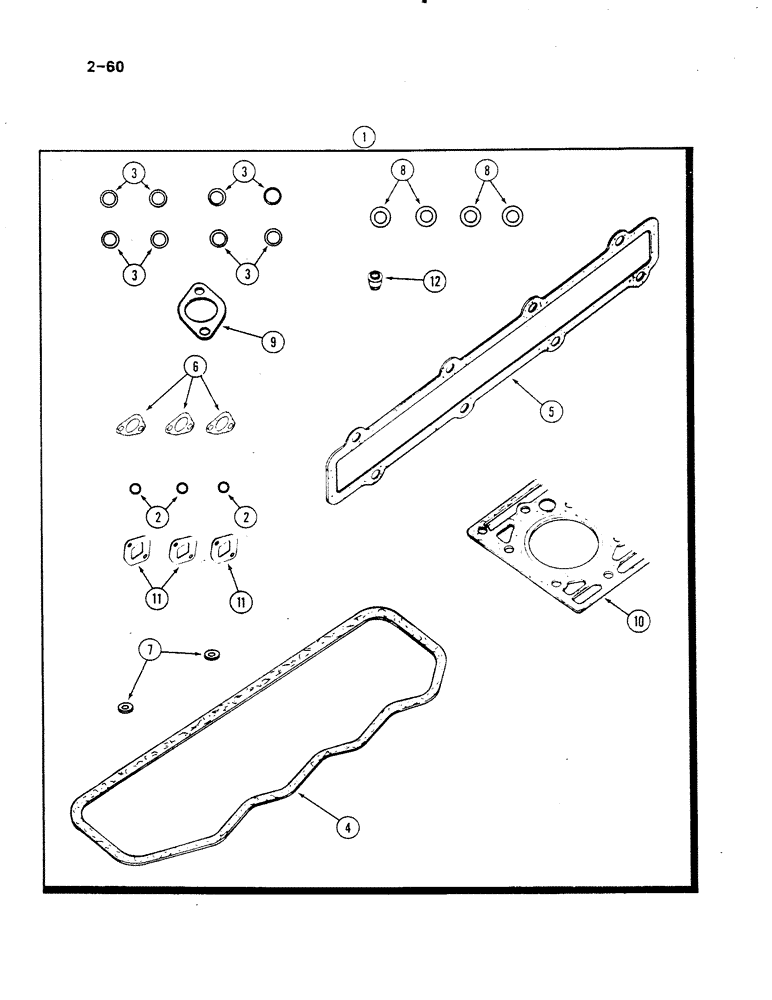

GASKET KIT

PACKAGE gaskets, cylinder head, Includes Ref. 2 - 12, service kits

1шт.

2

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

3шт.

3

3053133R1

SEALING RING,M8 x 11.5 x 1

WASHER, SEALING, M8 x 11.5 x 1

8шт.

4

3138641R1

GASKET

cover, valve housing

1шт.

5

3055397R1

GASKET

intake manifold

1шт.

6

3055306R1

GASKET

manifold, water collecting

3шт.

7

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

valve cover

2шт.

8

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

RING packing

4шт.

9

3132143R1

GASKET

water outlet flange

1шт.

10

3228361R1

CYLINDER HEAD GASKET

cylinder head

1шт.

11

3132434R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

3шт.

12

3218399R91

GASKET KIT

KIT valve stem seal

1шт.
