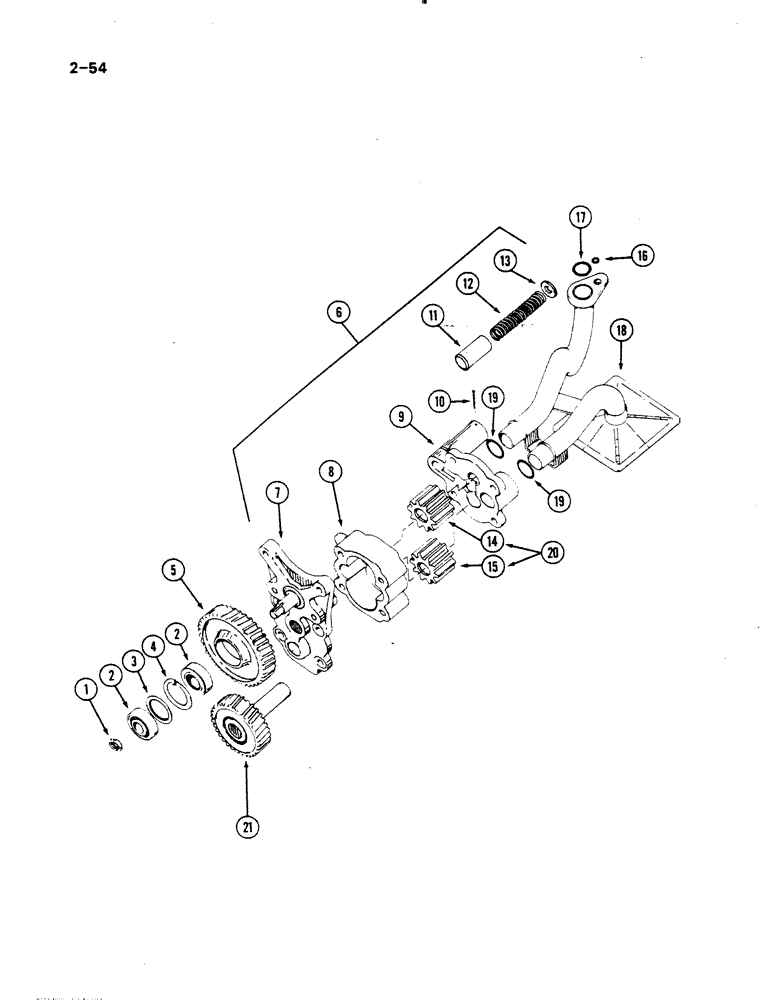

Запчасти Case IH 485 (2-054) - OIL PUMP (02) - ENGINE

3136429R95

PUMP, ENGINE OIL

PUMP oil, Includes: Ref. 1 thru 15

1шт.

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

4шт.

21035R1

HEX SOC SCREW,5/16"-18 x 1"

- hex socket head, 5/16"-18 NC x 1"

4шт.

1

3228141R1

LOCK NUT

lock

1шт.

2

3055294R91

TAPERED BEARING

BEARING taper roller

2шт.

3

3055292R1

WASHER

WASHER

1шт.

4

933579R1

SNAP RING,M35, Int

Retaining M35, Int

1шт.

5

3055291R1

PINION

GEAR idler

1шт.

6

3136435R95

HOUSING ASSY.

CARRIER, Includes: pin and Ref. 7 thru 13

1шт.

932597R1

LOCK PIN,M10 x 14, Slotted

Spring M10 x 14, Slotted

3шт.

7

NSS

NOT SOLD SEPARAT

CARRIER, with bushing

1шт.

3055297R5

AXLE

SHAFT idler gear

1шт.

8

NSS

NOT SOLD SEPARAT

CASE oil pump gear

1шт.

9

NSS

NOT SOLD SEPARAT

COVER oil pump

1шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

4шт.

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

11

3055202R2

VALVE

relief, piston

1шт.

12

3136264R1

SPRING

valve, pressure relief

1шт.

13

3139620R1

SPRING WASHER

spring, retaining

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR idler (Order set 3136440R91)

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR, (Order set 3136440R91)

1шт.

16

717222R1

O-RING

11.3 x 16.1 mm

1шт.

17

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

sealing, oil pump

1шт.

18

1806888C1

PIPE ASSY.

PIPE oil pressure and suction

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

1шт.

19

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

sealing, oil pump

2шт.

20

3136440R91

GEAR-SET

GEAR set, oil pump

1шт.

21

3136437R91

PINION

GEAR drive

1шт.
