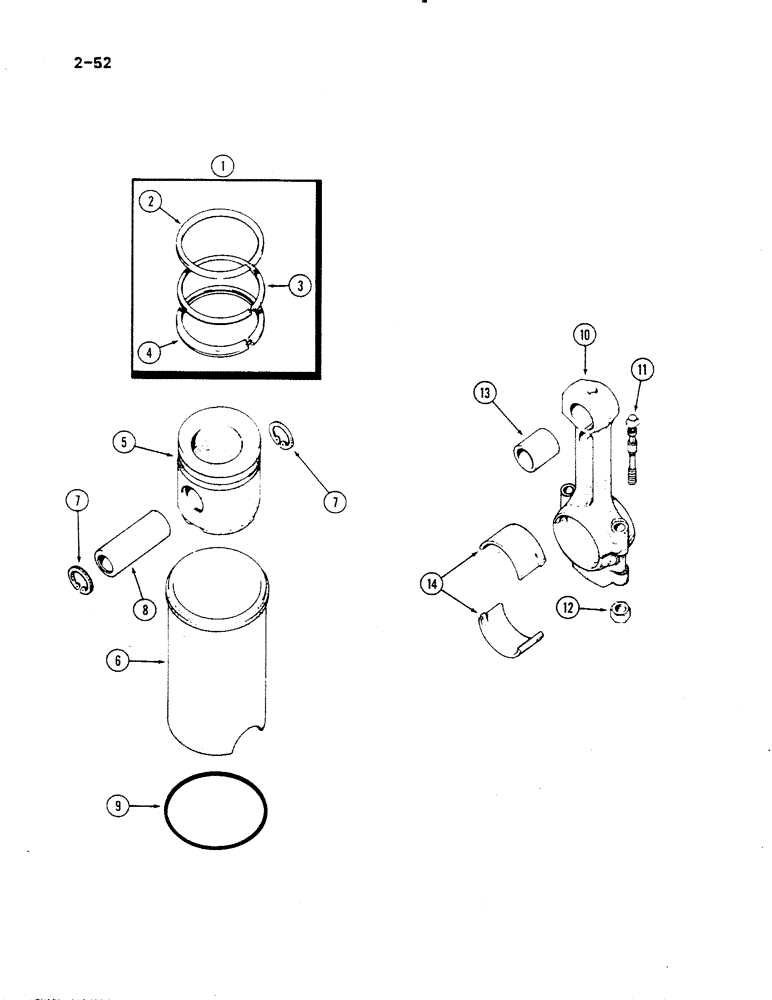

Запчасти Case IH 485 (2-052) - CONNECTING ROD, PISTONS AND SLEEVE (02) - ENGINE

1

3218416R92

PISTON RING SET

RING SET piston, chrome, Includes Ref. 2 - 4

3шт.

2

NSS

NOT SOLD SEPARAT

RING compression (First)

1шт.

3

NSS

NOT SOLD SEPARAT

RING compression (Second)

1шт.

4

NSS

NOT SOLD SEPARAT

RING compression (Third)

1шт.

5

3218759R95

SLEEVE ASSY

PISTON, with sleeve, Includes: Ref. 6

3шт.

6

3139592R4

SLEEVE CYLINDER

1шт.

7

933327R1

SNAP RING,M36, Int

RING retaining

6шт.

8

3055217R2

PISTON PIN

PIN piston

3шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

packing, cylinder sleeve

3шт.

10

3055030R24

ROD, CONNECTING

ROD connecting, complete, Includes 11 - 13

3шт.

11

3055033R11

BOLT

- Connecting rod, with nut, Includes Ref 12

2шт.

12

NSS

NOT SOLD SEPARAT

NUT connecting rod bolt

1шт.

13

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

piston pin

1шт.

14

3055351R91

BEARING ASSY

BEARING connecting rod, standard size

3шт.

14

3056834R11

BEARING ASSY

BEARING connecting rod, 0.25 mm undersize

3шт.
