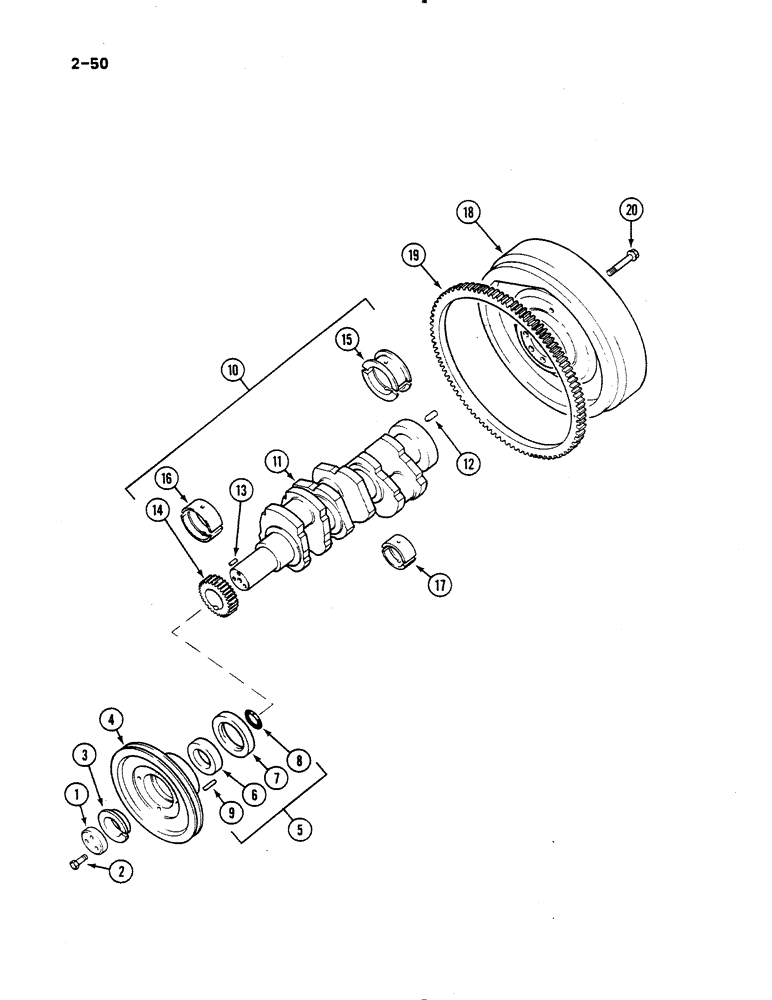

Запчасти Case IH 485 (2-050) - CRANKCASE FLYWHEEL AND BEARINGS (02) - ENGINE

1

3055154R1

WASHER

pressure

1шт.

2

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

3

3138874R1

BEARING WASHER

RING clamping

1шт.

4

1808484C1

PULLEY

crankshaft

1шт.

5

3228133R93

SEAL KIT

KIT service, crankshaft oil seal, Includes Ref. 6 - 9 and fitting instructions

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER distance

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL crankshaft, front

1шт.

8

713778R1

O-RING,3mm Thk x 55mm ID

55 x 61 mm

1шт.

9

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

9

932224R1

DOWEL,M4 x 32, Oval

PIN dowel, 4 x 32 mm

1шт.

9

932652R1

DOWEL,4mm OD x 28mm L

PIN dowel, 4 x 28 mm

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS fitting

1шт.

10

3055782R92

CRANKSHAFT BEARING

standard, Includes: Ref. 11 - 19

1шт.

11

NSS

NOT SOLD SEPARAT

CRANKSHAFT, Includes: Ref. 12 - 14

1шт.

12

141242

DOWEL

PIN dowel, 3/8 x 7/8 inch

1шт.

13

932169R1

LOCK PIN,M4 x 10, Slotted

Spring M4 x 10, Slotted

1шт.

14

3055028R1

PINION

GEAR pinion, crankshaft, 33 teeth

1шт.

15

3055129R21

CRANKSHAFT BEARING

BEARING main, standard size

1шт.

16

3055130R21

CRANKSHAFT BEARING

BEARING main, standard size

3шт.

17

3055351R91

BEARING ASSY

BEARING connecting rod, standard size

3шт.

18

3144614R95

FLYWHEEL WITH GEAR

FLYWHEEL

1шт.

19

60883H

RING GEAR

GEAR ring

1шт.

20

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

- Flywheel

1шт.
