Запчасти Case IH 485 (2-048) - OIL FILTER (02) - ENGINE

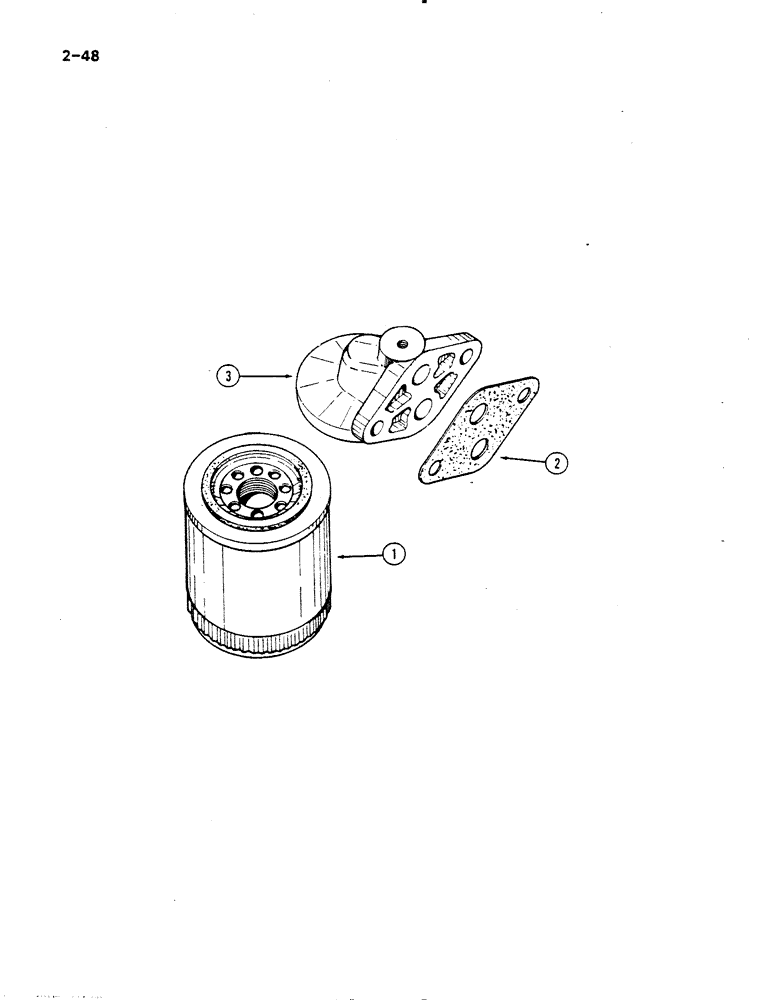

Схема запчастей Case IH 485 - (2-048) - OIL FILTER (02) - ENGINE
1
2
3

Артикул

Название

Примечание

Количество

1

3136046R93

FILTER, ENGINE OIL

FILTER oil

1шт.

2

3055237R1

GASKET

oil filter socket

1шт.

3

3136047R1

HEAD

SOCKET oil filter

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, grade 5

2шт.

3144513R1

SPRING WASHER

WASHER disc spring type

2шт.

445684

PLUG

automotive square, 1/8 inch NPTF, (For blanking off oil pressure switch)

1шт.

Выбрано товаров: 6
