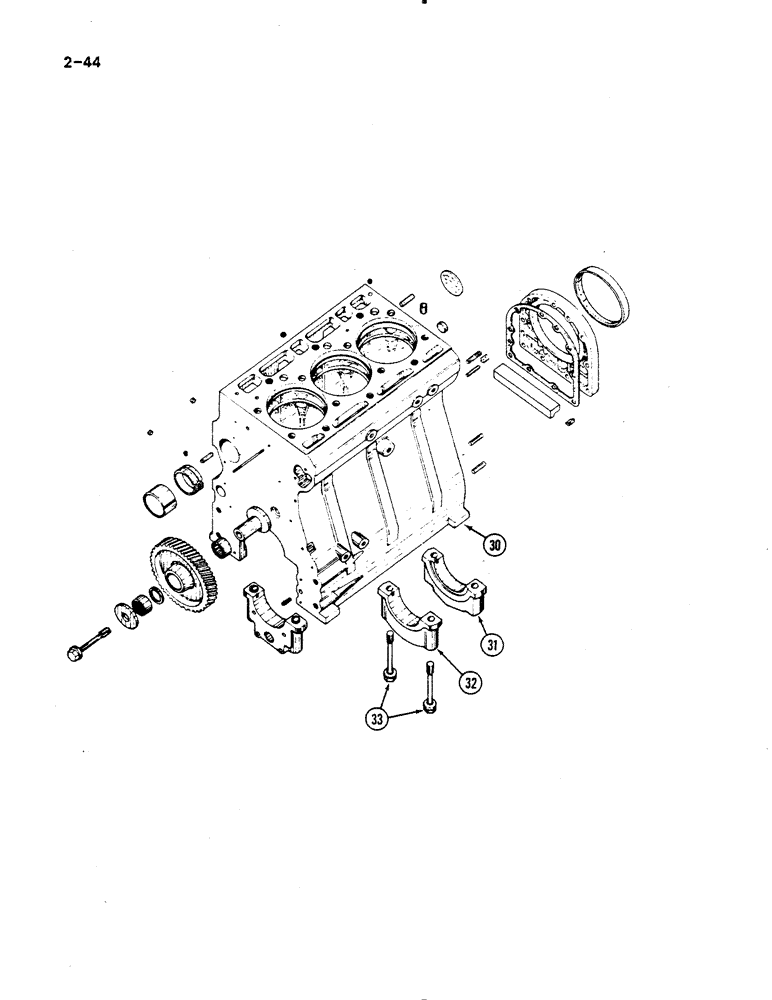

Запчасти Case IH 485 (2-044) - CYLINDER BLOCK AND RELATED PARTS (CONTD) (02) - ENGINE

30

3055001R37

CRANKCASE

BLOCK cylinder, includes block, plugs, pins, cover, screw, stud, bearings, bushing and cap listed below

1шт.

NSS

NOT SOLD SEPARAT

BLOCK

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

2шт.

3144520R1

PLUG

pipe, slotted headless

3шт.

NLS

NO LONGER SERVICED

PIN dowel, 3/8 x 7/8 inch

4шт.

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

172602

SUPPORT

expansion, 2-3/4 inch

1шт.

933537R1

PLUG,M25, Conical

cup

2шт.

3136004R1

COVER

closing, 10 mm

1шт.

3132885R1

BOLT

stop

8шт.

3055270R1

STUD

rear

1шт.

3055008R2

CRANKSHAFT BEARING,57.56mm ID x 63.1mm OD x 30mm W

BEARING camshaft, front

1шт.

Bearing must be linebored after installation in block.

1шт.

1806820C1

CAMSHAFT BEARING,57.98mm ID x 63mm OD x 18mm W

BEARING camshaft

2шт.

Bearing must be linebored after installation in block.

1шт.

3055007R1

BUSHING

dowel

2шт.

NSS

NOT SOLD SEPARAT

CAP crankshaft bearing

4шт.

31

3144436R91

CRANKSHAFT BEARING

KIT service, rear main bearing cap, includes cap and bolt listed below and instructions

1шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

NSS

NOT SOLD SEPARAT

BOLT

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

32

3144438R91

BEARING ASSY

KIT service, bearing cap, includes cap and bolt listed below and instructions

2шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

NSS

NOT SOLD SEPARAT

BOLT

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

33

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

- Bearing cap

8шт.

34

3055012R31

CYLINDER END CAP

BEARING CAP, not shown

1шт.
