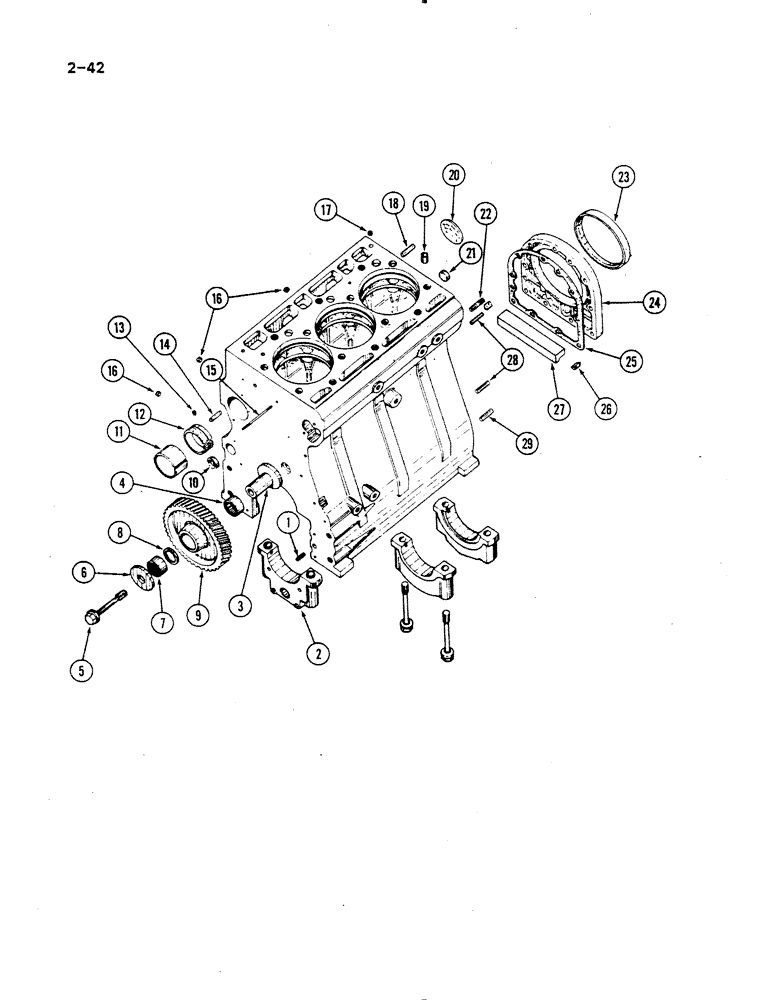

Запчасти Case IH 485 (2-042) - CYLINDER BLOCK AND RELATED PARTS (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
141242
DOWEL
PIN dowel, 3/8 x 7/8 inch
1шт.
2
NSS
NOT SOLD SEPARAT
CAP bearing, front
1шт.
3
3055373R1
CARRIER
idler gear
1шт.
4
3058816R91
NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W
BEARING needle
1шт.
4
3136515R91
BEARING
needle, Serial Range: (Optional-3058816R91)
1шт.
5
3055374R2
BOLT
BOLT, idler gear carrier
1шт.
6
3055372R1
DISC
RING anti wear, idler gear
1шт.
7
3058816R91
NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W
BEARING needle
1шт.
7
3136515R91
BEARING
needle, Serial Range: (Optional-3058816R91)
1шт.
8
787656R1
SPACER,35.5mm ID x 41mm OD x 4mm L
RING distance
1шт.
10
933537R1
PLUG,M25, Conical
cup
1шт.
11
3055008R2
CRANKSHAFT BEARING,57.56mm ID x 63.1mm OD x 30mm W
BEARING camshaft, front
1шт.
12
1806820C1
CAMSHAFT BEARING,57.98mm ID x 63mm OD x 18mm W
BEARING camshaft
3шт.
13
103883
PIPE PLUG,Slotted, Headless, 1/8" NPT
PLUG, PIPE, Slotted, Headless, 1/8" NPT
2шт.
14
NLS
NO LONGER SERVICED
PIN dowel, 3/8 x 7/8 inch
4шт.
15
3055989R1
STUD
crankcase front
1шт.
16
3144520R1
PLUG
slotted headless, pipe
3шт.
17
3136004R1
COVER
closing, 10 mm
1шт.
18
141284
PIN,25.4mm OD x 31.75mm L
Pin 1/2" x 1 1/8"
2шт.
19
3055007R1
BUSHING
dowel
2шт.
20
41-3044
PLUG,Exp, 2 3/4"
expansion, 2-3/4 inch
1шт.
21
933537R1
PLUG,M25, Conical
cup, 1" diameter, P/N 933573 is 1-1/4" dia.
1шт.
22
3055270R1
STUD
rear
1шт.
23
3138701R91
SEAL
SEAL oil, crankcase rear
1шт.
24
3055216R1
RETAINER
oil seal
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
8шт.
9635082
NUT,5/16" - 18, Gr 5
hex, 5/16 inch NC, grade 5
1шт.
3218395R1
BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk
Lock (5/16") M8.2 ID x 16 OD x .9 Thk
9шт.
25
3055215R1
GASKET
crankcase, oil seal retainer
1шт.
26
714868R1
SEALING STRIP
sealing
2шт.
27
3055214R1
SUPPORT
STRIP sealing crankcase
1шт.
28
141242
DOWEL
PIN dowel, 3/8 x 7/8 inch
2шт.
29
141284
PIN,25.4mm OD x 31.75mm L
Pin 1/2" x 1 1/8"
2шт.
Выбрано товаров: 34
