(2-040) - CYLINDER BLOCK SIDE COVER, TRACTORS WITH VALVE COVER BREATHER

Запчасти Case IH 485 (2-040) - CYLINDER BLOCK SIDE COVER, TRACTORS WITH VALVE COVER BREATHER (02) - ENGINE

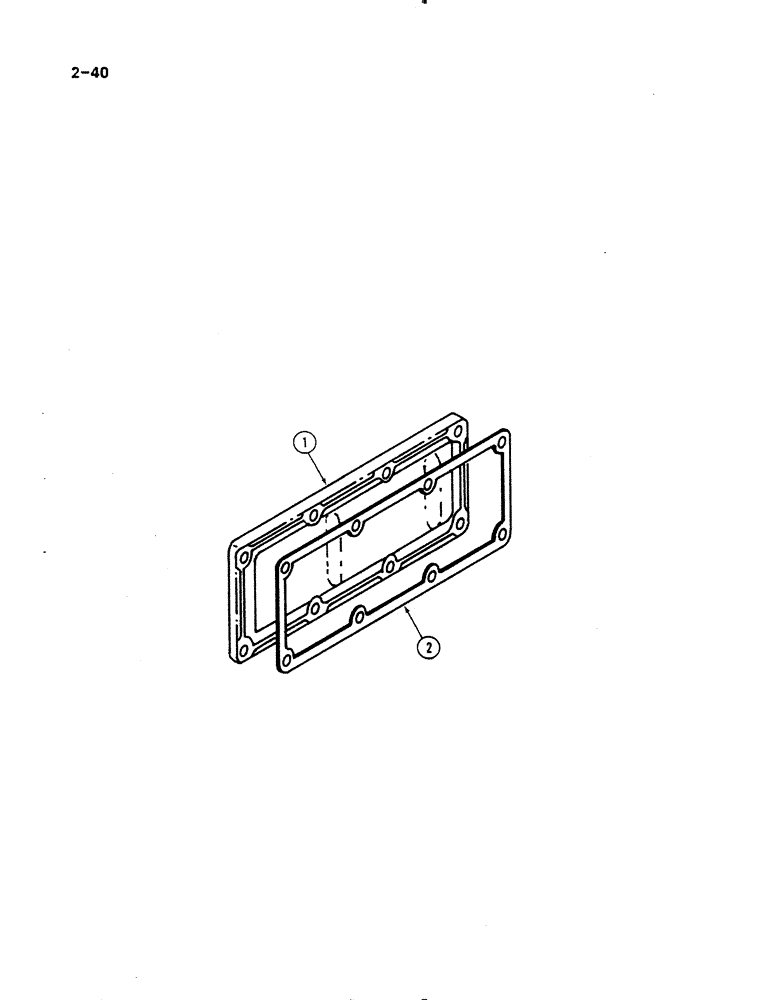

Схема запчастей Case IH 485 - (2-040) - CYLINDER BLOCK SIDE COVER, TRACTORS WITH VALVE COVER BREATHER (02) - ENGINE
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3132815R2

COVER

cylinder block side

1шт.

179814

SPACER

- hex, 5/16 NC x 5/8 inch, grade 5

8шт.

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

8шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

flat, 5/16 inch

8шт.

2

3055394R2

GASKET

side cover

1шт.
