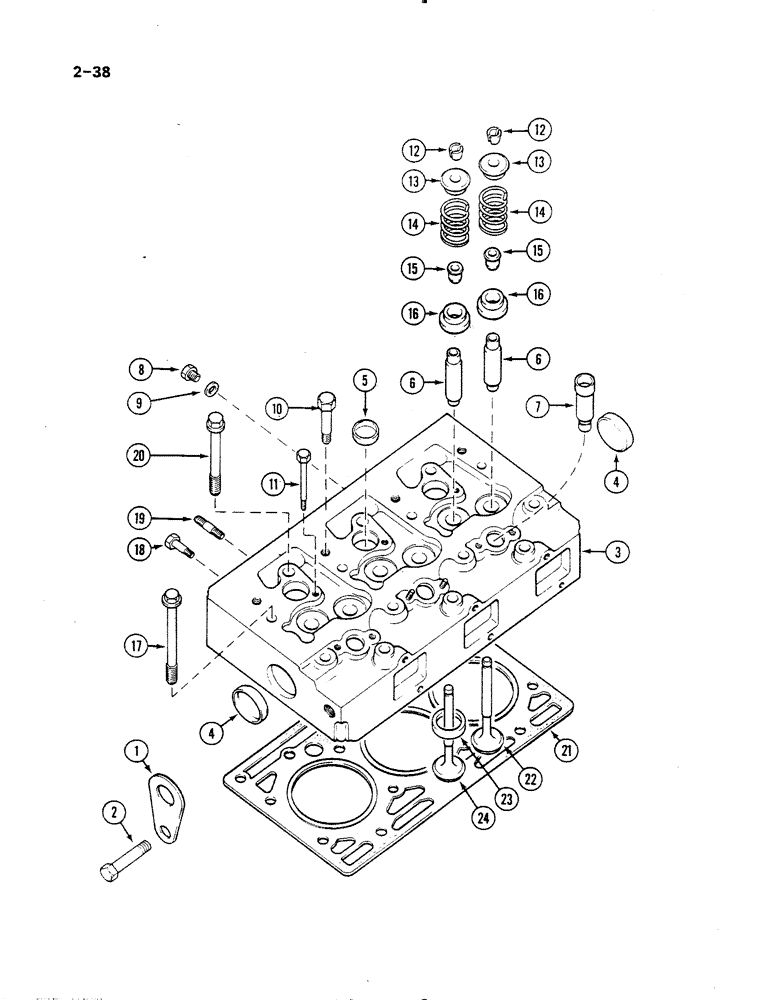

Запчасти Case IH 485 (2-038) - CYLINDER HEAD (02) - ENGINE

1

3055370R1

STIRRUP

SHACKLE engine mounting, front

1шт.

2

13-1218

BOLT,Hex, 3/4" - 10 x 1-1/8", Gr 5

hex, 3/4 NC x 1-1/8 inch, grade 5

1шт.

3

3055366R96

HEAD (CYLINDER)

HEAD cylinder, Includes Ref. 4 - 7

1шт.

4

934003R1

PLUG,M52, Conical

expansion

2шт.

5

933537R1

PLUG,M25, Conical

cup, 25 mm, for 32 mm plug P/N is 933573R1

3шт.

6

3055022R2

VALVE GUIDE

GUIDE valve stem

6шт.

7

3055344R1

SLEEVE

INSERT nozzle holder

3шт.

8

934259R1

PLUG,Hex, M10 x 1

1шт.

9

718743R1

SEALING RING,M10 x 16 x 1

Ring M10 x 16 x 1

1шт.

10

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

- hex, 1/2" NC x 3-1/4", grade 5 (Rocker shaft bracket)

4шт.

11

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

- hex, 5/16"-18 NC x 4-1/2", grade 5 (Valve cover)

2шт.

12

3055057R91

ROCKER ARM COTTER

KEY, spring lock valve

12шт.

13

3055058R2

SPRING CUP

CAP, valve spring retainer

6шт.

14

3055060R1

SPRING

valve

6шт.

15

3218399R91

GASKET KIT

KIT valve stem seal, contains 6 valve stem seals and 1 sleeve

6шт.

16

3055059R91

CAP

VALVE rotator

6шт.

17

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

BOLT cylinder head

8шт.

18

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

Water collecting pipe Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

19

3055663R1

STUD

exhaust manifold, 3/8 NF x 3/8 NC x 38 mm

6шт.

20

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

cylinder head

6шт.

21

3228361R1

CYLINDER HEAD GASKET

cylinder head

1шт.

22

3055055R2

OVERSIZE INLET VALVE

VALVE intake

3шт.

23

3132361R1

INSERT

seat, exhaust valve, 0.016 inch oversize

3шт.

23

3132362R1

VALVE SEAT

INSERT seat, exhaust valve, 0.006 inch oversize

3шт.

24

3055056R2

STD EXHAUST VALVE

VALVE exhaust

3шт.
