Запчасти Case IH 485 (2-036) - VALVE MECHANISM (02) - ENGINE

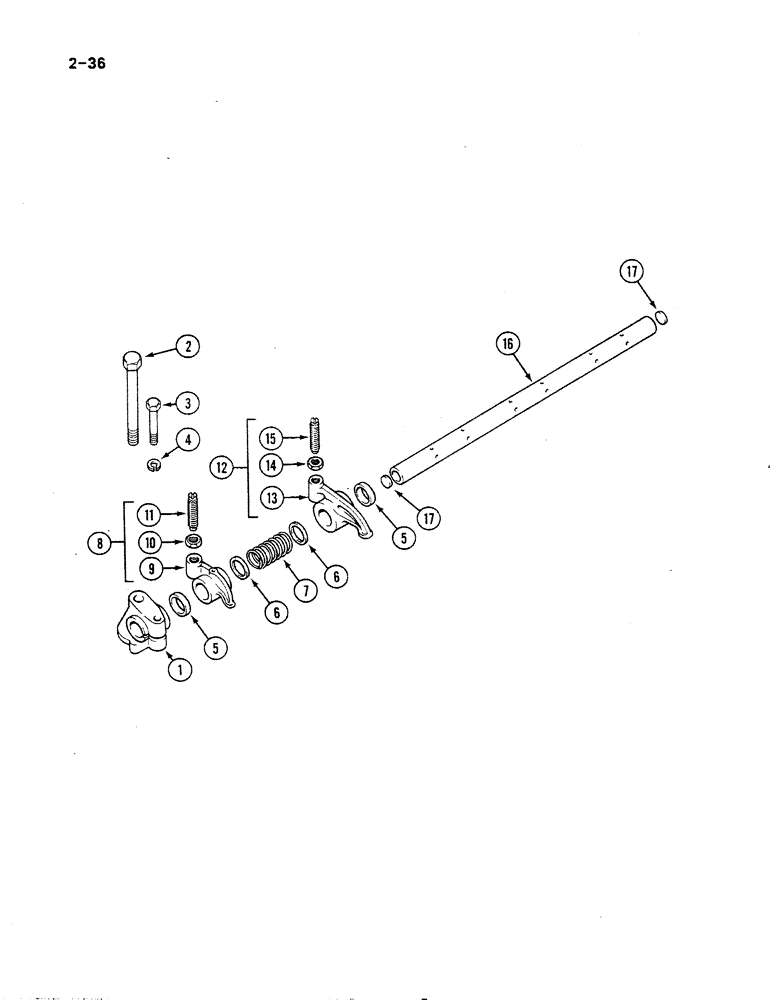

Схема запчастей Case IH 485 - (2-036) - VALVE MECHANISM (02) - ENGINE
13
1
14
7
2
8
5
12
3
5
17
15
9
11
6
16
6
17
4
10

Артикул

Название

Примечание

Количество

1

3055077R6

SUPPORT

BRACKETshaft, rocker arm

4шт.

2

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

- hex, 1/2" NC x 3-1/4", grade 5

4шт.

3

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

4

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

4шт.

5

3055068R1

BUSHING,22mm ID x 30mm OD x 6.8mm L

distance

5шт.

6

3055669R1

THRUST WASHER

thrust, rocker arm

6шт.

7

3055075R2

SPRING

rocker arm

3шт.

8

3132293R92

ROCKER

KIT service, exhaust rocker arm, Includes: Ref. 9 - 11

3шт.

9

NSS

NOT SOLD SEPARAT

ARM ASSEMBLY exhaust

1шт.

10

3132138R1

NUT

adjusting, rocker arm

1шт.

11

3132137R1

ADJUSTMENT SCREW

Rocker arm

1шт.

12

3132292R92

ROCKER

KIT service, intake rocker arm, Includes: Ref. 13 - 15

3шт.

13

NSS

NOT SOLD SEPARAT

ARM ASSEMBLY intake

1шт.

14

3132138R1

NUT

adjusting, rocker arm

1шт.

15

3132137R1

ADJUSTMENT SCREW

Rocker arm

1шт.

16

3055069R31

SHAFT

rocker arm

1шт.

17

933565R1

PLUG,M14, Conical

cup

2шт.

Выбрано товаров: 17
