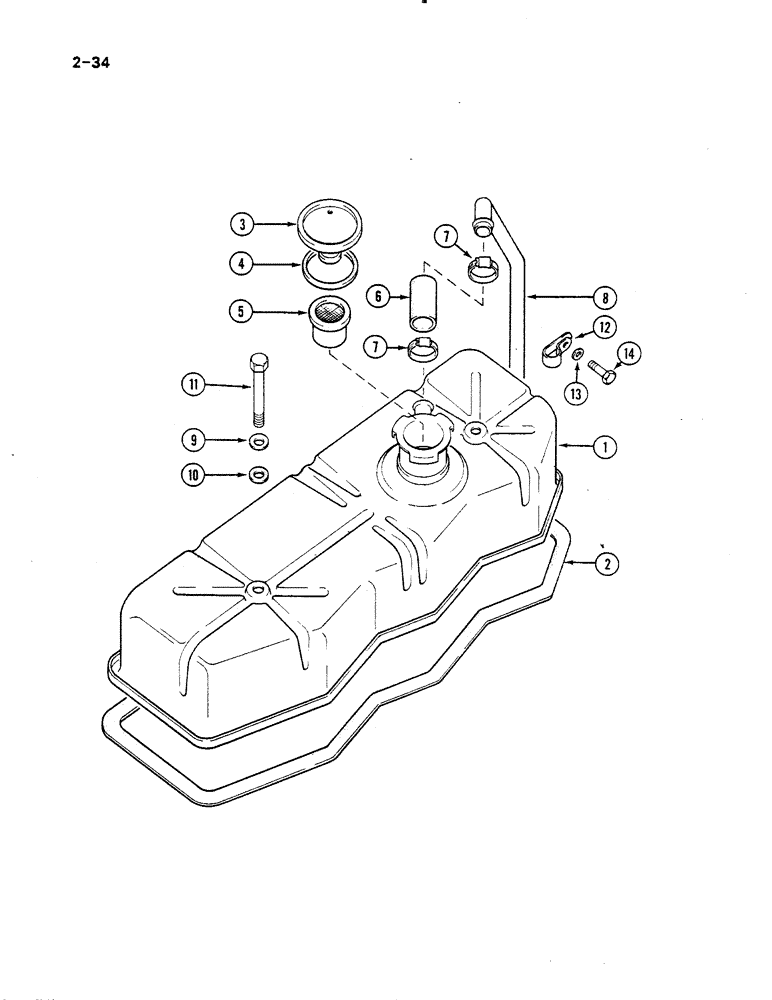

Запчасти Case IH 485 (2-034) - VALVE HOUSING COVER (02) - ENGINE

1

3136358R13

COVER

valve housing

1шт.

2

3138641R1

GASKET

valve housing cover

1шт.

3

3136337R91

COVER

CAP breather, Includes: Ref. 4

1шт.

4

3136338R1

GASKET,45mm ID x 68mm OD x 2.3mm Thk

breather cap

1шт.

5

3136336R1

FILTER

STRAINER insert, breather

1шт.

6

1806928C1

HOSE

connecting

1шт.

7

3143364R1

CLAMP,19mm - 23mm

hose

2шт.

8

1806921C2

TUBE,18 mm OD

breather

1шт.

9

3138637R1

CUP WASHER

WASHER valve cover

2шт.

10

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

valve cover

2шт.

11

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

- hex, 5/16"-18 NC x 4-1/2", grade 5

2шт.

12

1808195C1

CLAMP

1шт.

13

27516R1

WASHER,19/32" x 1 3/16" x .134", HDN

flat, hardened, 9/16 inch

1шт.

14

25827R1

BOLT,Hex, 9/16" - 12 x 1", Gr 8

- hex, 9/16 NC x 1 inch

1шт.
