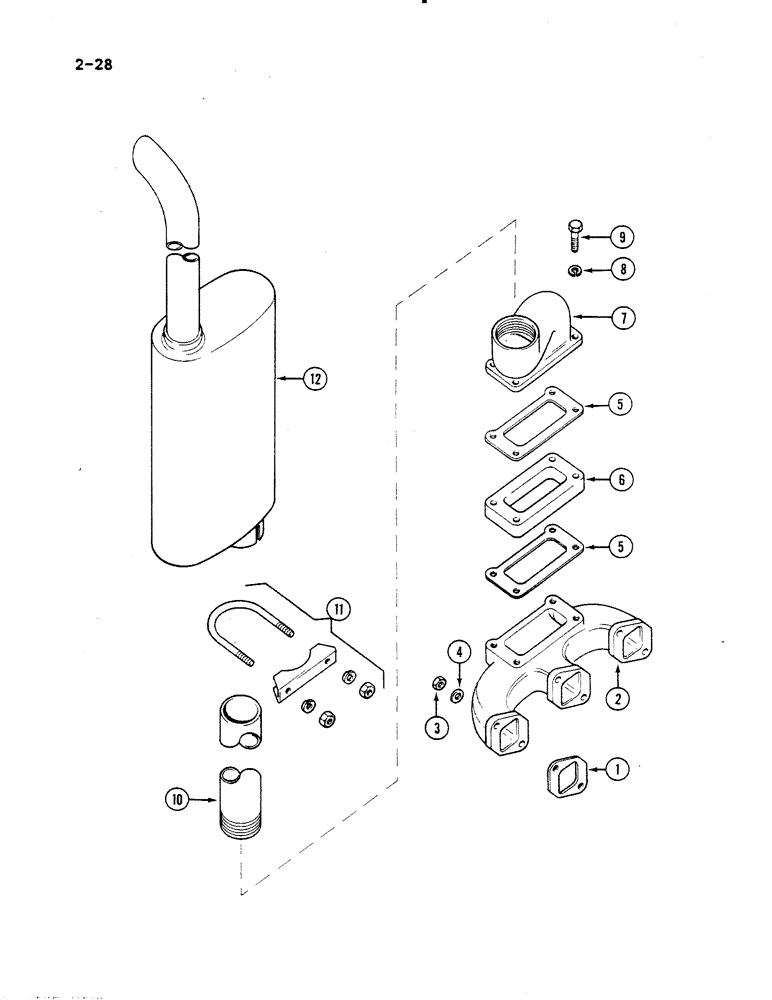

Запчасти Case IH 485 (2-028) - VERTICAL EXHAUST (02) - ENGINE

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

3шт.

2

3121373R3

MANIFOLD

exhaust

1шт.

3

103026

NUT,3/8"-24, G5

6шт.

4

20285H

WASHER

plain, 0.406 x 0.75 x 0.105 inch

6шт.

5

3136248R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

2шт.

6

3125792R1

SPACER

manifold

1шт.

7

3136250R1

ELBOW

exhaust manifold

1шт.

8

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

NLS

NO LONGER SERVICED

4шт.

10

80547C1

TUBE

KIT service, exhaust pipe, includes pipe listed below and fitting instructions

1шт.

NSS

NOT SOLD SEPARAT

PIPE exhaust

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS fitting

1шт.

10

379661R1

PIPE

EXTENSION exhaust, with R.O.P.S. canopy

1шт.

11

1502294C1

CLAMP

muffler, U-type

1шт.

12

83027C1

MUFFLER

exhaust, curved end

1шт.

12

83028C1

MUFFLER

exhaust, curved end, Serial Range: optional-83027C1

1шт.
