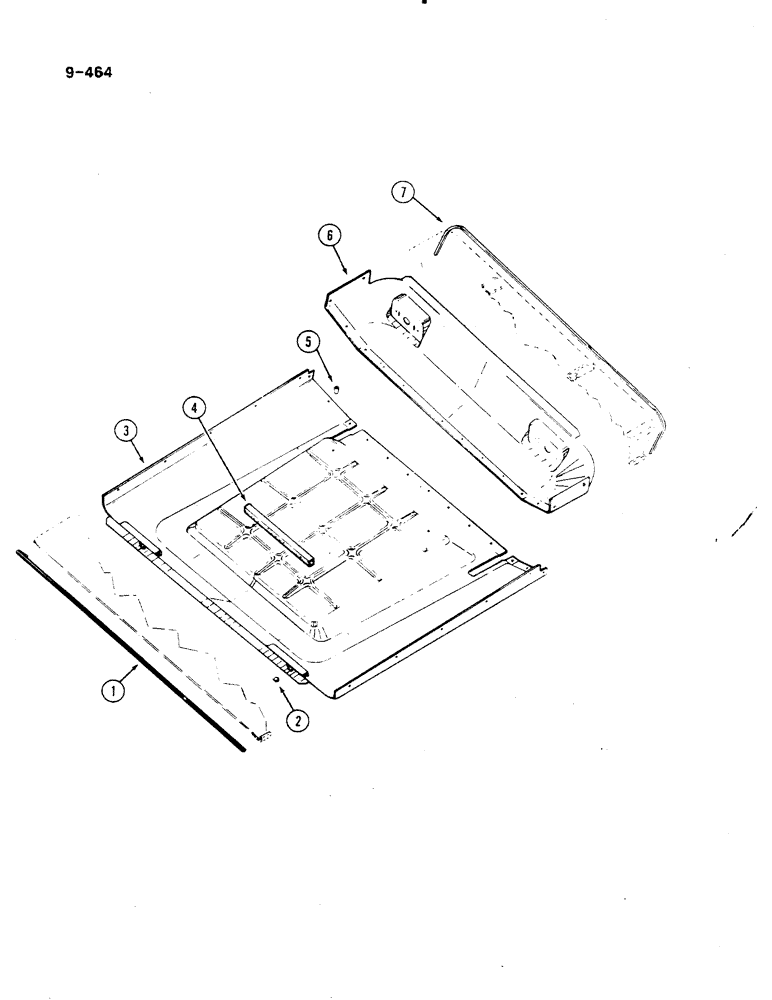

Запчасти Case IH 485 (9-464) - CANOPY HEADLINER TRIM (09) - CHASSIS/ATTACHMENTS

1

118483C2

STRIP, METERS

STRIP roof trim, bulk length, canopy with sheared front edges

1шт.

2

118515C1

CLIP

U type, speed

18шт.

3

118381C1

PANEL

HEADLINER front

1шт.

24396R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW tapping, pan cross recess, No. 10 x 3/4 inch

10шт.

684322R1

SPRING NUT

U-type, spring

10шт.

120391

WASHER,#10

flat, 0.219 x 0.5 x 0.036 inch

10шт.

4

531216R1

STRIP

vibration dampener, 15 inch, cut from 73213C2

1шт.

4

73213C2

FILLING STRIP

GASKET foam, bulk length, 4 foot

1шт.

5

12302N

SPACER,1/4" Pipe x 15/16"

pipe, 15/16 inch

2шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120386

WASHER

flat, 0.312 x 0.734 x 0.051 inch

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

6

118359C1

PANEL

headliner, rear

1шт.

120391

WASHER,#10

flat, 0.219 x 0.5 x 0.036 inch

15шт.

24396R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW tapping, pan cross recess, No. 10 x 3/4 inch

15шт.

684322R1

SPRING NUT

U-type, spring

15шт.

7

118483C2

STRIP, METERS

STRIP roof trim, bulk length, canopy with sheared front edges

1шт.

1286896C1

STRIP

CHANNEL conduit, ROPS bar trim

1шт.
