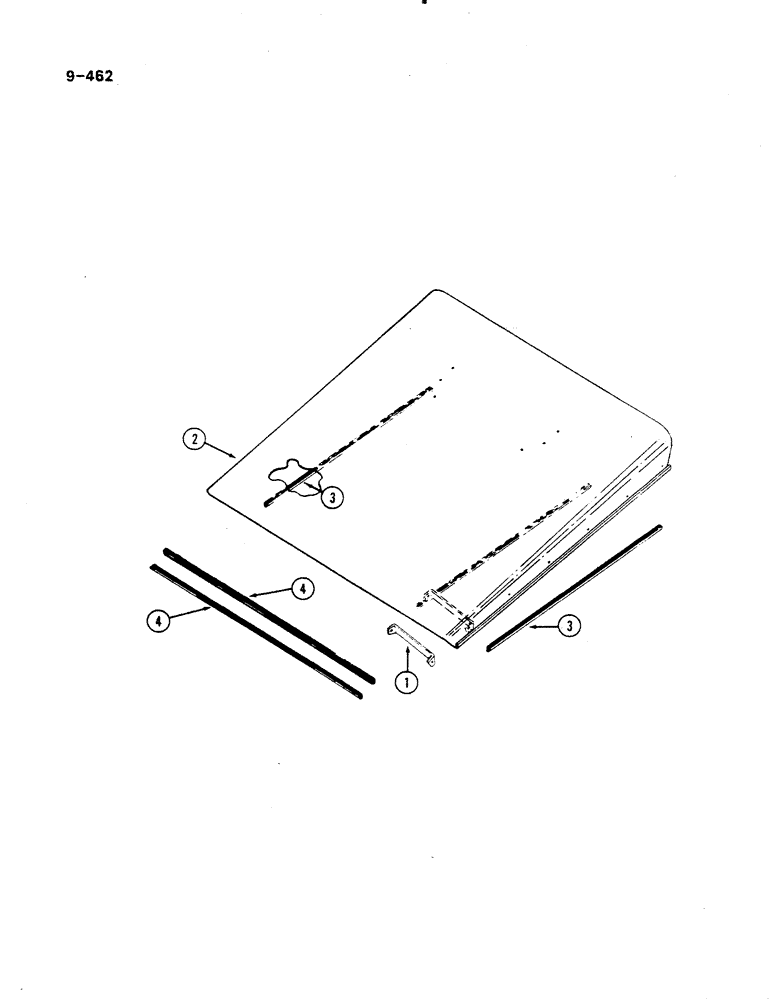

Запчасти Case IH 485 (9-462) - R.O.P.S. CANOPY (09) - CHASSIS/ATTACHMENTS

1

118531C2

BRACKET

stabilizer

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

4шт.

2

118375C3

TOP

ROOF canopy

1шт.

2

1281633C2

TOP

ROOF canopy, Serial Range: optional-118375C3

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

28672R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT carriage, 1/2 NC x 2 inch, grade 5

8шт.

3

118524C2

SEALING STRIP

STRIP trim

1шт.

4

NSS

NOT SOLD SEPARAT

STRIP trim, 31 inch, cut from 1327666C1

2шт.

1327666C1

SEAL

STRIP trim, bulk length 50 foot roll

1шт.

3123992R1

PLUG

canopy blanking, 7 mm, when headliner trim not fitted

1шт.

1332024C1

PLUG,5/8"

Restraining cable 5/8"

2шт.
